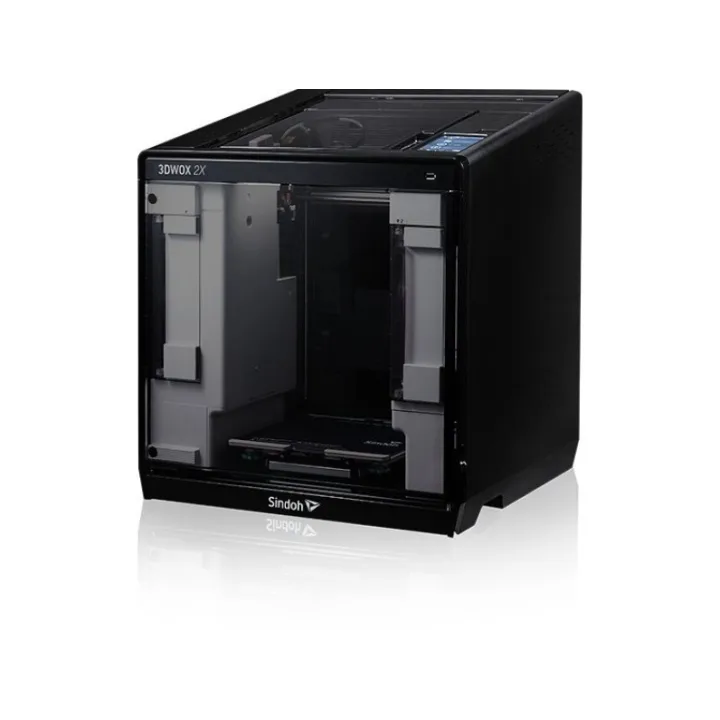

Sindoh 3DWOX 2X vs UltiMaker S5
What 3DWOX 2X does better (2) and where S5 wins (7) — every spec side by side.
Dimensions
Size comparison
3DWOX 2XS5
| 3DWOX 2X | S5 | Difference | |
|---|---|---|---|
| Height | 573 mm | 585 mm | −12 mm |
| Width | 490 mm | 495 mm | −5 mm |
| Depth | 466 mm | 780 mm | −314 mm |
| Weight | 31 kg | 20.6 kg | +10.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is 3DWOX 2X better than S5?
- Build height (Z)300 mm vs 240 mm+25%
- Screen size5″ vs 4.7″+6%
Why is S5 better than 3DWOX 2X?
- Build volume13.7 L vs 23.8 L+74%
- Finest layer height0.05 mm vs 0.02 mm2.5×
- Engineering materials (PA, PC, CF)No · 3DWOX 2X: Yes
- Number of supported materials3 vs 103.3×
- Weight31 kg vs 20.6 kg+50%
- Build depth (Y)200 mm vs 300 mm+50%
- Build width (X)228 mm vs 330 mm+45%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | Bed-slinger (i3-style) | — |
| Build volume | ||
| Build width (X) | 228 mm | 330 mm |
| Build depth (Y) | 200 mm | 300 mm |
| Build height (Z) | 300 mm | 240 mm |
| Build volume | 13.7 L | 23.8 L |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.02 mm |
| Thickest layer height | 0.4 mm | 0.6 mm |
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | — | 280 °C |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.25, 0.4, 0.6, 0.8 |
| Toolheads | — | 1 |
| Nozzles | — | 1 |
| Filament diameter | 1.75 mm | 2.85 mm |
| Supported materials | PLA, ABS, Flexible | Optimized for PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A, PVA |
| Number of supported materials | 3 | 10 |
| Engineering materials (PA, PC, CF) | No | Yes |
| Print bed | ||
| Heated bed | — | Yes |
| Max bed temperature | — | 140 °C |
| Connectivity & control | ||
| Connectivity | Wi-Fi, Ethernet, USB | Wi-Fi, Ethernet, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | Yes |
| USB | Yes | Yes |
| Screen size | 5″ | 4.7″ |
| Touchscreen | Yes | Yes |
| Size & power | ||
| Width | 490 mm | 495 mm |
| Depth | 466 mm | 780 mm |
| Height | 573 mm | 585 mm |
| Weight | 31 kg | 20.6 kg |
| Rated power | — | 500 W |
