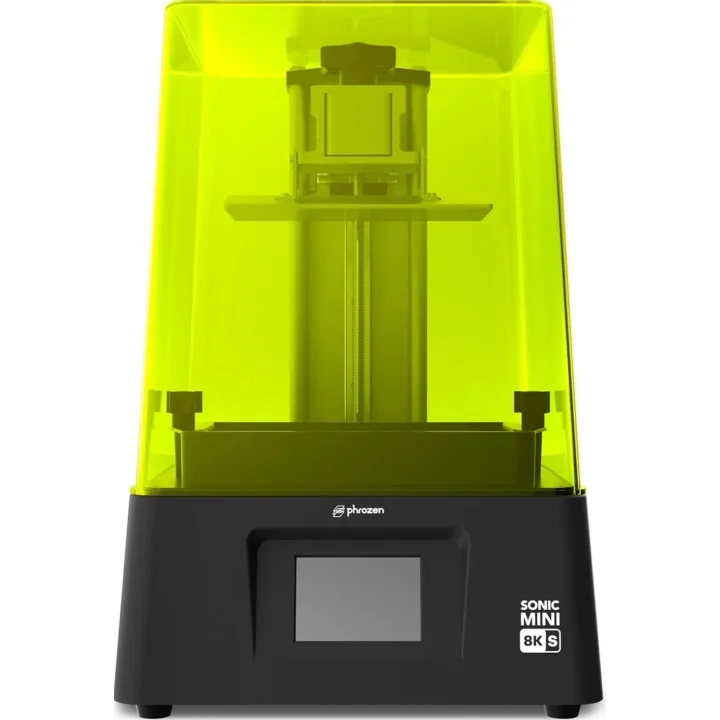

Elegoo Mars 3 vs Phrozen Sonic Mini 8K S
What Mars 3 does better (4) and where Sonic Mini 8K S wins (4) — every spec side by side.
vs
4.6Print quality6.9
3.8Build volume3.1
2.4Ease of use2.9
Dimensions
Size comparison
Mars 3Sonic Mini 8K S
| Mars 3 | Sonic Mini 8K S | Difference | |
|---|---|---|---|
| Height | 438.5 mm | 430 mm | +8.5 mm |
| Width | 227 mm | 290 mm | −63 mm |
| Depth | 227 mm | 290 mm | −63 mm |
| Weight | 5.2 kg | 10 kg | −4.8 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Mars 3 better than Sonic Mini 8K S?
- Build volume2.3 L vs 2 L+15%
- Weight5.2 kg vs 10 kg+92%
- Build height (Z)175 mm vs 170 mm+3%
- Build depth (Y)90 mm vs 72 mm+25%
Why is Sonic Mini 8K S better than Mars 3?
- LCD resolution class4K vs 8K2×
- XY resolution35 µm vs 22 µm+59%
- Build width (X)143 mm vs 165 mm+15%
- LCD size6.6″ vs 7.1″+8%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 143 mm | 165 mm |
| Build depth (Y) | 90 mm | 72 mm |
| Build height (Z) | 175 mm | 170 mm |
| Build volume | 2.3 L | 2 L |
| Speed | ||
| Resin print speed | 50 mm/h | — |
| Print quality | ||
| Finest layer height | 0.01 mm | — |
| Thickest layer height | 0.2 mm | — |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Resin & LCD | ||
| LCD resolution class | 4K | 8K |
| LCD resolution (px) | 4098 × 2560 | — |
| LCD size | 6.6″ | 7.1″ |
| XY resolution | 35 µm | 22 µm |
| Connectivity & control | ||
| Connectivity | USB | USB |
| Wi-Fi | No | No |
| Ethernet | No | No |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| Screen size | 3.5″ | — |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | — |
| Size & power | ||
| Width | 227 mm | 290 mm |
| Depth | 227 mm | 290 mm |
| Height | 438 mm | 430 mm |
| Weight | 5.2 kg | 10 kg |
| Rated power | 60 W | — |
