- Peek-300 vs Pro2 Plus

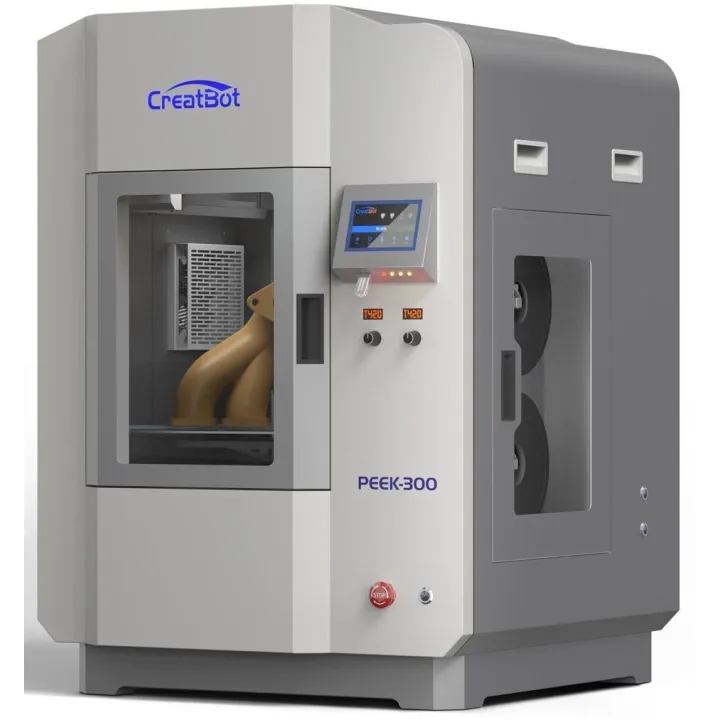

CreatBot Peek-300 vs Raise3D Pro2 Plus
What Peek-300 does better (4) and where Pro2 Plus wins (6) — every spec side by side.
Dimensions
Size comparison
Peek-300Pro2 Plus
| Peek-300 | Pro2 Plus | Difference | |
|---|---|---|---|
| Height | 750 mm | 1,105 mm | −355 mm |
| Width | 650 mm | 620 mm | +30 mm |
| Depth | 600 mm | 590 mm | +10 mm |
| Weight | 100 kg | 59.3 kg | +40.7 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Peek-300 better than Pro2 Plus?
- Max nozzle temperature480 °C vs 300 °C+60%
- Engineering materials (PA, PC, CF)Yes · Pro2 Plus: No
- Max bed temperature200 °C vs 110 °C+82%
- Number of supported materials17 vs 53.4×
Why is Pro2 Plus better than Peek-300?
- Build volume36 L vs 56.3 L+56%
- Finest layer height0.04 mm vs 0.01 mm4×
- Wi-FiNo · Peek-300: Yes
- Build height (Z)400 mm vs 605 mm+51%
- EthernetNo · Peek-300: Yes
- Weight100 kg vs 59.3 kg+69%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Build volume | ||
| Build width (X) | 300 mm | 305 mm |
| Build depth (Y) | 300 mm | 305 mm |
| Build height (Z) | 400 mm | 605 mm |
| Build volume | 36 L | 56.3 L |
| Speed | ||
| Max print speed | 150 mm/s | 150 mm/s |
| Print quality | ||
| Finest layer height | 0.04 mm | 0.01 mm |
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | 480 °C | 300 °C |
| Direct-drive extruder | Yes | — |
| Default nozzle | 0.4 mm | 0.4 mm |
| Nozzles | 2 | 2 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | PLA, ABS, ASA, PC, Nylon, PETG, PVDF, Carbon Fiber, UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI (ULTEM), PEEK, CF-PEEK, GF-PEEK, PEKK | PLA, ABS, HIPS, TPU, PETG |
| Number of supported materials | 17 | 5 |
| Engineering materials (PA, PC, CF) | Yes | No |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 200 °C | 110 °C |
| Enclosure | ||
| Actively heated chamber | Yes | — |
| Max chamber temperature | 120 °C | — |
| Connectivity & control | ||
| Connectivity | USB | Wi-Fi, Ethernet, USB |
| Wi-Fi | No | Yes |
| Ethernet | No | Yes |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| Screen size | 4.3″ | — |
| Touchscreen | Yes | — |
| Features | ||
| Built-in camera | — | Yes |
| Filament runout sensor | Yes | — |
| Power-loss recovery | Yes | Yes |
| Size & power | ||
| Width | 650 mm | 620 mm |
| Depth | 600 mm | 590 mm |
| Height | 750 mm | 1,105 mm |
| Weight | 100 kg | 59.3 kg |
| Rated power | 4,600 W | 600 W |
| Noise level | — | 50 dB |
