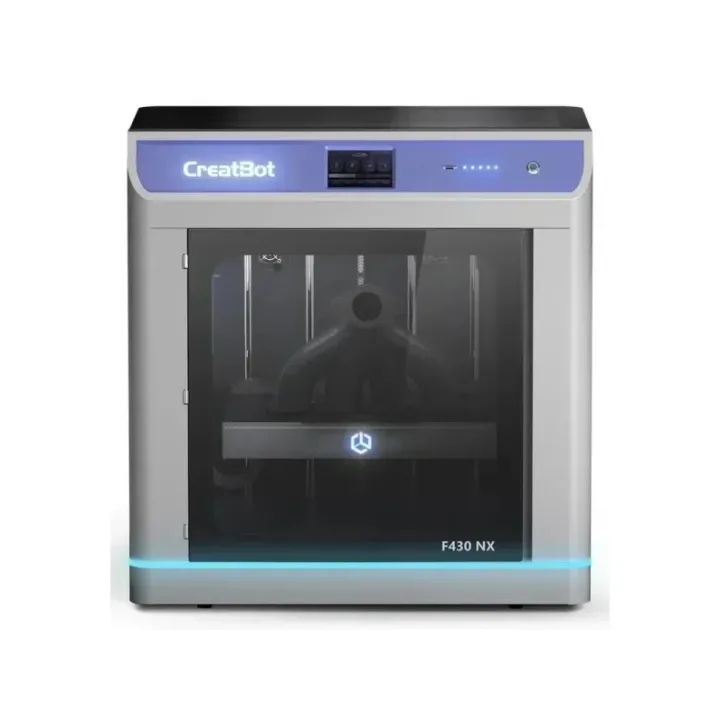

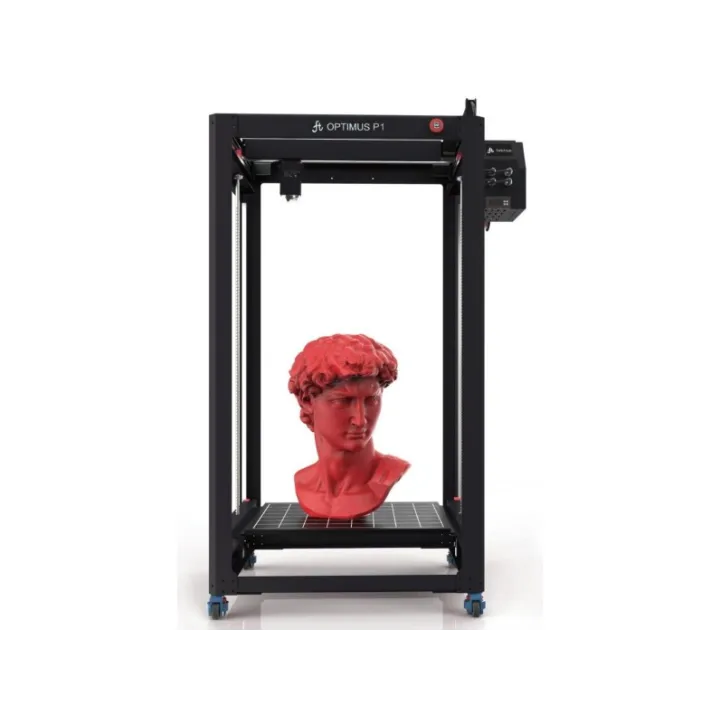

CreatBot F430 NX vs Optimus P1
What F430 NX does better (5) and where P1 wins (5) — every spec side by side.
Why is F430 NX better than P1?
- Finest layer height0.02 mm vs 0.05 mm2.5×
- Engineering materials (PA, PC, CF)Yes · P1: No
- Max bed temperature140 °C vs 100 °C+40%
- Number of supported materials11 vs 6+83%
- Screen size5″ vs 3.5″+43%
Why is P1 better than F430 NX?
- Build volume36 L vs 396 L11×
- Build height (Z)300 mm vs 1,100 mm3.7×
- Build depth (Y)300 mm vs 600 mm2×
- Weight107 kg vs 55 kg+95%
- Build width (X)400 mm vs 600 mm+50%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Delivered as | — | Fully assembled |
| Build volume | ||
| Build width (X) | 400 mm | 600 mm |
| Build depth (Y) | 300 mm | 600 mm |
| Build height (Z) | 300 mm | 1,100 mm |
| Build volume | 36 L | 396 L |
| Speed | ||
| Max print speed | 300 mm/s | — |
| Print quality | ||
| Finest layer height | 0.02 mm | 0.05 mm |
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | 420 °C | — |
| Direct-drive extruder | — | Yes |
| Default nozzle | 0.4 mm | — |
| Filament diameter | 1.75 mm | — |
| Supported materials | PLA, ABS, PA, PC, PETG, PP, ABS-PC, PET-CF, PET-GF, UltraPA-CF, UltraPA-GF | PLA, ABS, Wood PLA, Rubber, Flex (TPU), PETG. |
| Number of supported materials | 11 | 6 |
| Engineering materials (PA, PC, CF) | Yes | No |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 140 °C | 100 °C |
| Enclosure | ||
| Enclosed build chamber | — | No |
| Actively heated chamber | Yes | — |
| Max chamber temperature | 70 °C | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, Ethernet, USB | USB, SD card |
| Wi-Fi | Yes | — |
| Ethernet | Yes | — |
| USB | Yes | Yes |
| SD card | — | Yes |
| Screen size | 5″ | 3.5″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Power-loss recovery | Yes | — |
| Size & power | ||
| Width | 780 mm | — |
| Depth | 540 mm | — |
| Height | 750 mm | — |
| Weight | 107 kg | 55 kg |
| Rated power | 3,000 W | — |
