CreatBotLarge-format FDM

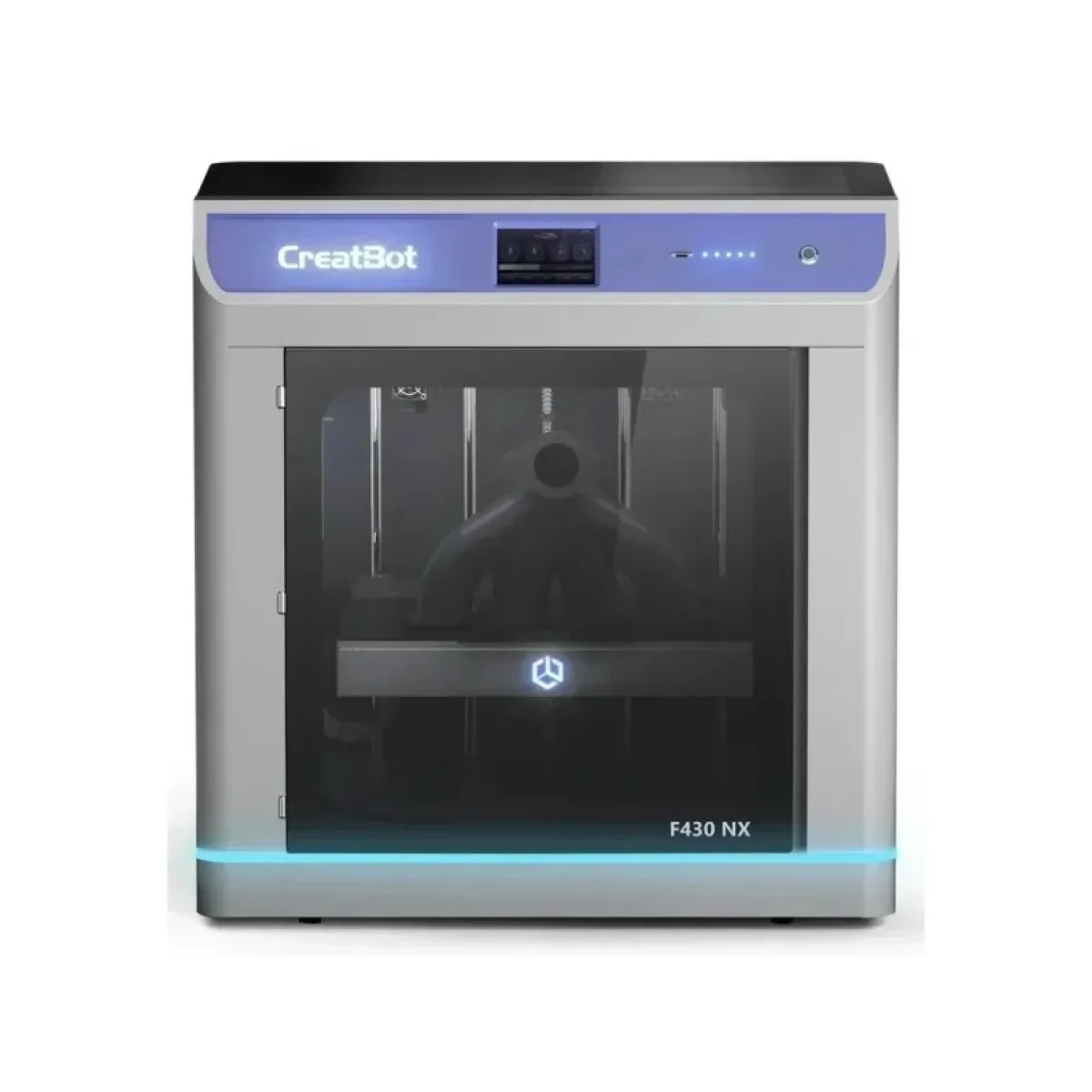

CreatBot F430 NX
CreatBot F430 NX is a large-format FDM released in 2020. Key specs: technology FDM / FFF (filament), build volume 36 L, max print speed 300 mm/s, max nozzle temperature 420 °C.
7.8Score
Speed7.6
Print quality9.1
Material versatility9.4
Build volume2.5
Ease of use7.7
price range$4,300–5,300
- Year
- 2020
- Type
- Large-format FDM
- Brand
CreatBot- Popularity
- #225 of 286
FDM / FFF (filament)Technology
36 LBuild volume
300 mm/sMax print speed
420 °CMax nozzle temperature
140 °CMax bed temperature
Spec guide
How it ranks among large-format printers of 2020
Build volume · 36 LTop 18%Max print speed · 300 mm/sTop 50%Max nozzle temperature · 420 °CTop 8%Max bed temperature · 140 °CTop 8%
Compared with large-format printers released in 2020. Bars show the share of models it beats.
compared with other large-format printers
Why is F430 NX a good choice?
Max nozzle temperature: 420 °Cbetter than 85% of large-format printers
Max bed temperature: 140 °Cbetter than 98% of large-format printers
Finest layer height: 0.02 mmbetter than 93% of large-format printers
Number of supported materials: 11better than 90% of large-format printers
Weak points
Build height (Z): 300 mmworse than 100% of large-format printers
Build volume: 36 Lworse than 94% of large-format printers
Specifications
Full specifications
Build volume
- Build width (X)
- 400 mm
- Build depth (Y)
- 300 mm
- Build height (Z)
- 300 mm
- Build volume
- 36 L
Speed
- Max print speed
- 300 mm/s
Print quality
- Finest layer height
- 0.02 mm
- Automatic bed levelling
- Yes
Extruder & hotend
- Max nozzle temperature
- 420 °C
- Default nozzle
- 0.4 mm
- Filament diameter
- 1.75 mm
- Number of supported materials
- 11
- Engineering materials (PA, PC, CF)
- Yes
Print bed
- Heated bed
- Yes
- Max bed temperature
- 140 °C
Enclosure
- Actively heated chamber
- Yes
- Max chamber temperature
- 70 °C
Connectivity & control
- Connectivity
- Wi-Fi, Ethernet, USB
- Wi-Fi
- Yes
- Ethernet
- Yes
- USB
- Yes
- Screen size
- 5″
- Touchscreen
- Yes
Features
- Power-loss recovery
- Yes
Size & power
- Width
- 780 mm
- Depth
- 540 mm
- Height
- 750 mm
- Weight
- 107 kg
- Rated power
- 3,000 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
