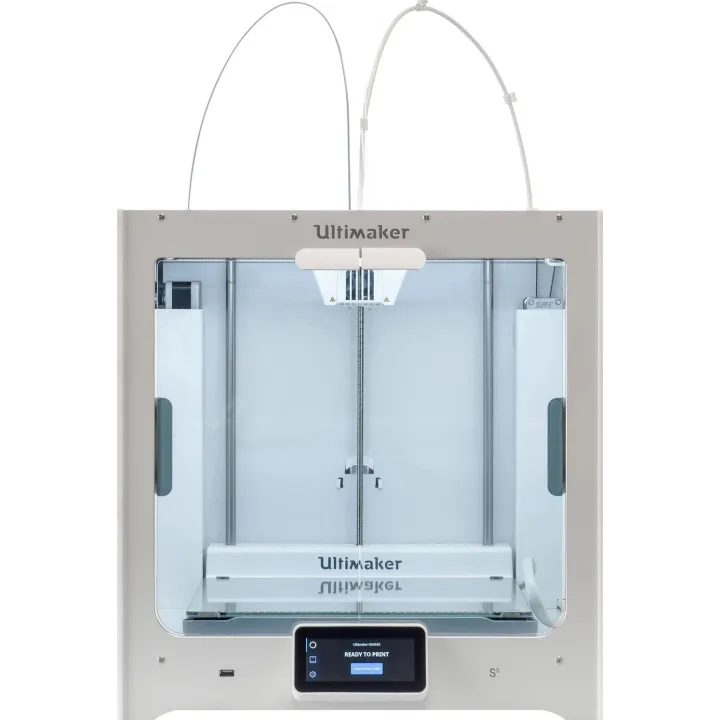

CreatBot DX vs UltiMaker S5
What DX does better (3) and where S5 wins (7) — every spec side by side.
Dimensions
Size comparison
DXS5
| DX | S5 | Difference | |
|---|---|---|---|
| Height | 570 mm | 585 mm | −15 mm |
| Width | 420 mm | 495 mm | −75 mm |
| Depth | 380 mm | 780 mm | −400 mm |
| Weight | 25 kg | 20.6 kg | +4.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is DX better than S5?
- Max nozzle temperature350 °C vs 280 °C+25%
- Build height (Z)300 mm vs 240 mm+25%
- Number of supported materials13 vs 10+30%
Why is S5 better than DX?
- Finest layer height0.05 mm vs 0.02 mm2.5×
- Build volume22.5 L vs 23.8 L+6%
- Max bed temperature100 °C vs 140 °C+40%
- Weight25 kg vs 20.6 kg+21%
- Build depth (Y)250 mm vs 300 mm+20%
- Build width (X)300 mm vs 330 mm+10%
- Screen size4.3″ vs 4.7″+9%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Build volume | ||
| Build width (X) | 300 mm | 330 mm |
| Build depth (Y) | 250 mm | 300 mm |
| Build height (Z) | 300 mm | 240 mm |
| Build volume | 22.5 L | 23.8 L |
| Speed | ||
| Max print speed | 200 mm/s | — |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.02 mm |
| Thickest layer height | — | 0.6 mm |
| Extruder & hotend | ||
| Max nozzle temperature | 350 °C | 280 °C |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.25, 0.4, 0.6, 0.8 |
| Toolheads | — | 1 |
| Nozzles | — | 1 |
| Filament diameter | 1.75 mm | 2.85 mm |
| Supported materials | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc. | Optimized for PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A, PVA |
| Number of supported materials | 13 | 10 |
| Engineering materials (PA, PC, CF) | Yes | Yes |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 100 °C | 140 °C |
| Connectivity & control | ||
| Connectivity | USB | Wi-Fi, Ethernet, USB |
| Wi-Fi | — | Yes |
| Ethernet | — | Yes |
| USB | Yes | Yes |
| Screen size | 4.3″ | 4.7″ |
| Touchscreen | Yes | Yes |
| Size & power | ||
| Width | 420 mm | 495 mm |
| Depth | 380 mm | 780 mm |
| Height | 570 mm | 585 mm |
| Weight | 25 kg | 20.6 kg |
| Rated power | — | 500 W |
