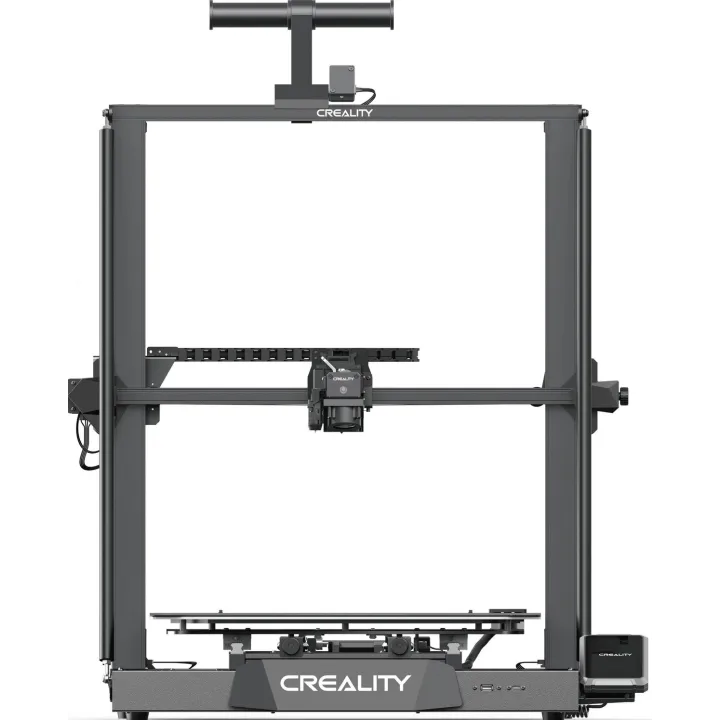

Creality CR-M4 vs Zaxe Z3
What CR-M4 does better (5) and where Z3 wins (1) — every spec side by side.
Dimensions
Size comparison
CR-M4Z3
| CR-M4 | Z3 | Difference | |
|---|---|---|---|
| Height | 865 mm | 667 mm | +198 mm |
| Width | 655 mm | 585 mm | +70 mm |
| Depth | 700 mm | 665 mm | +35 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is CR-M4 better than Z3?
- Build volume95.2 L vs 42 L2.3×
- Build height (Z)470 mm vs 350 mm+34%
- Build depth (Y)450 mm vs 300 mm+50%
- Number of supported materials5 vs 4+25%
- Build width (X)450 mm vs 400 mm+12%
Why is Z3 better than CR-M4?
- TouchscreenNo · CR-M4: Yes
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | — |
| Motion system | CoreXY / XY-head | — |
| Build volume | ||
| Build width (X) | 450 mm | 400 mm |
| Build depth (Y) | 450 mm | 300 mm |
| Build height (Z) | 470 mm | 350 mm |
| Build volume | 95.2 L | 42 L |
| Speed | ||
| Max print speed | 120 mm/s | — |
| Print quality | ||
| Finest layer height | 0.05 mm | — |
| Thickest layer height | 0.35 mm | — |
| Extruder & hotend | ||
| Direct-drive extruder | Yes | — |
| Default nozzle | 0.4 mm | — |
| Toolheads | 1 | — |
| Nozzles | 1 | — |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, PA, PETG, PLA, TPU | ABS, PLA, PETG, Nylon |
| Number of supported materials | 5 | 4 |
| Engineering materials (PA, PC, CF) | Yes | Yes |
| Print bed | ||
| Heated bed | Yes | — |
| Max bed temperature | 100 °C | — |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Chamber light | Yes | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB, SD card | — |
| Wi-Fi | Yes | — |
| Ethernet | Yes | — |
| USB | Yes | — |
| SD card | Yes | — |
| Bluetooth | No | — |
| Screen size | 4.3″ | — |
| Touchscreen | No | Yes |
| Features | ||
| Power-loss recovery | Yes | — |
| Size & power | ||
| Width | 655 mm | 585 mm |
| Depth | 700 mm | 665 mm |
| Height | 865 mm | 667 mm |
| Weight | 22.5 kg | — |
| Rated power | 800 W | — |
