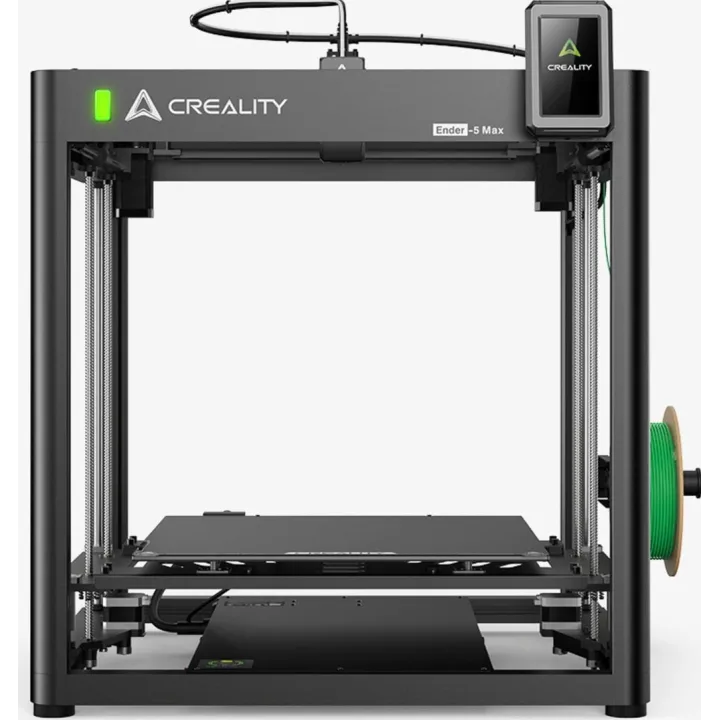

Creality Ender 5 Max vs Zaxe Z3
What Ender 5 Max does better (4) and where Z3 wins (0) — every spec side by side.
5.0Build volume3.7
Dimensions
Size comparison
Ender 5 MaxZ3
| Ender 5 Max | Z3 | Difference | |
|---|---|---|---|
| Height | 850 mm | 667 mm | +183 mm |
| Width | 721 mm | 585 mm | +136 mm |
| Depth | 649 mm | 665 mm | −16 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is Ender 5 Max better than Z3?
- Build volume64 L vs 42 L+52%
- Build height (Z)400 mm vs 350 mm+14%
- Build depth (Y)400 mm vs 300 mm+33%
- Number of supported materials5 vs 4+25%
Why is Z3 better than Ender 5 Max?
Z3 has no measurable advantages in this pair.
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | — |
| Motion system | CoreXY / XY-head | — |
| Delivered as | Partially assembled | — |
| All-metal frame | Yes | — |
| Build volume | ||
| Build width (X) | 400 mm | 400 mm |
| Build depth (Y) | 400 mm | 300 mm |
| Build height (Z) | 400 mm | 350 mm |
| Build volume | 64 L | 42 L |
| Speed | ||
| Max print speed | 700 mm/s | — |
| Max acceleration | 20,000 mm/s² | — |
| Print quality | ||
| Finest layer height | 0.05 mm | — |
| Thickest layer height | 0.3 mm | — |
| Vibration compensation (input shaping) | Yes | — |
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | — |
| Direct-drive extruder | Yes | — |
| Default nozzle | 0.4 mm | — |
| Supported nozzle sizes (mm) | 0.4, 0.8 | — |
| Swappable nozzle / hotend | Yes | — |
| Toolheads | 1 | — |
| Nozzles | 1 | — |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, ASA, PA, PETG, PLA | ABS, PLA, PETG, Nylon |
| Number of supported materials | 5 | 4 |
| Engineering materials (PA, PC, CF) | Yes | Yes |
| Print bed | ||
| Heated bed | No | — |
| Max bed temperature | 100 °C | — |
| Enclosure | ||
| Enclosed build chamber | No | — |
| Actively heated chamber | No | — |
| Chamber light | Yes | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB, Ethernet | — |
| Wi-Fi | Yes | — |
| Ethernet | Yes | — |
| USB | Yes | — |
| SD card | No | — |
| Bluetooth | No | — |
| Screen size | 4.3″ | — |
| Touchscreen | Yes | Yes |
| Features | ||
| Filament runout sensor | Yes | — |
| Power-loss recovery | Yes | — |
| Size & power | ||
| Width | 721 mm | 585 mm |
| Depth | 649 mm | 665 mm |
| Height | 850 mm | 667 mm |
| Weight | 25.9 kg | — |
| Rated power | 1,250 W | — |
