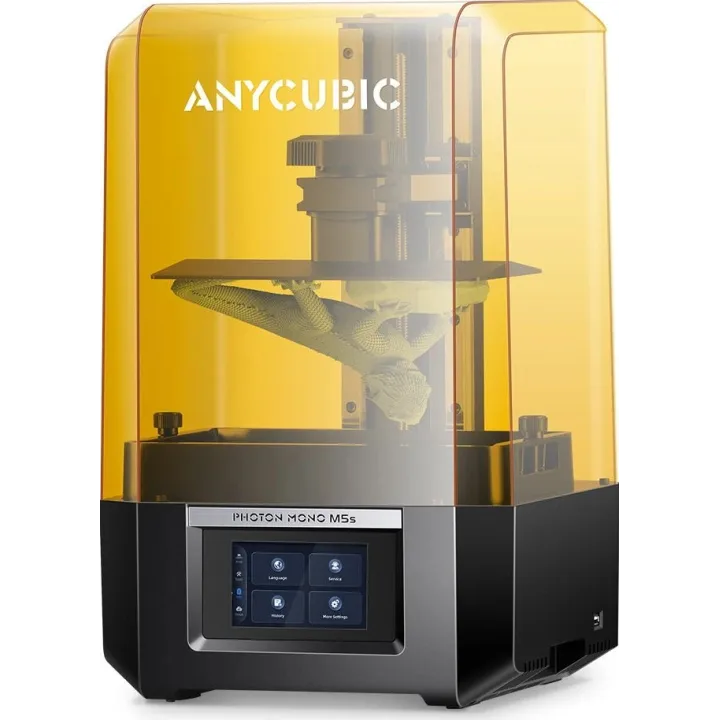

Anycubic Photon Mono M5s vs Elegoo Saturn 2
What Photon Mono M5s does better (2) and where Saturn 2 wins (2) — every spec side by side.
vs
5.4Build volume7.2
5.3Ease of use2.9
Dimensions
Size comparison
Photon Mono M5sSaturn 2
| Photon Mono M5s | Saturn 2 | Difference | |
|---|---|---|---|
| Height | 460 mm | 567 mm | −107 mm |
| Width | 290 mm | 273 mm | +17 mm |
| Depth | 270 mm | 306 mm | −36 mm |
| Weight | 8.9 kg | 11 kg | −2.1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Photon Mono M5s better than Saturn 2?
- Wi-FiYes · Saturn 2: No
- Weight8.9 kg vs 11 kg+24%
Why is Saturn 2 better than Photon Mono M5s?
- Build volume5.3 L vs 6.7 L+26%
- Build height (Z)200 mm vs 250 mm+25%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | — |
| Build volume | ||
| Build width (X) | 218 mm | 219 mm |
| Build depth (Y) | 122 mm | 123 mm |
| Build height (Z) | 200 mm | 250 mm |
| Build volume | 5.3 L | 6.7 L |
| Speed | ||
| Resin print speed | 105 mm/h | — |
| Print quality | ||
| Finest layer height | 0.01 mm | — |
| Thickest layer height | 0.15 mm | — |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Resin & LCD | ||
| LCD resolution class | 12K | — |
| LCD resolution (px) | 11520 × 5120 | — |
| LCD size | 10.1″ | — |
| XY resolution | 34 µm | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | USB |
| Wi-Fi | Yes | No |
| Ethernet | — | No |
| USB | Yes | Yes |
| SD card | — | No |
| Bluetooth | — | No |
| App control | Yes | — |
| Screen size | 4.3″ | — |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | — |
| Size & power | ||
| Width | 290 mm | 273 mm |
| Depth | 270 mm | 306 mm |
| Height | 460 mm | 567 mm |
| Weight | 8.9 kg | 11 kg |
| Rated power | 100 W | — |
