- Photon Mono M5 vs Photon Mono M5s

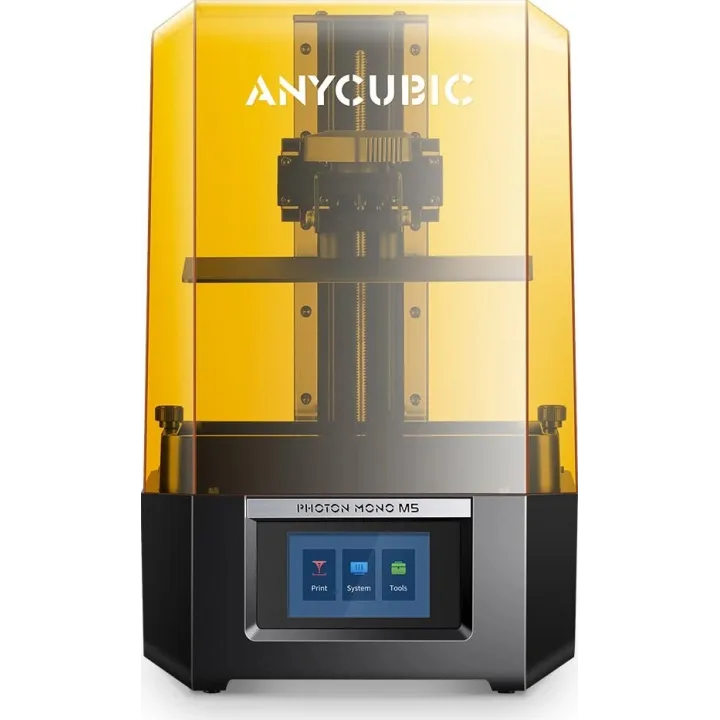

Anycubic Photon Mono M5 vs Anycubic Photon Mono M5s
What Photon Mono M5 does better (1) and where Photon Mono M5s wins (1) — every spec side by side.
vs
5.0Speed6.2
7.6Print quality7.6
5.9Material versatility5.9
5.6Build volume5.4
5.3Ease of use5.3
Dimensions
Size comparison
Photon Mono M5Photon Mono M5s
| Photon Mono M5 | Photon Mono M5s | Difference | |
|---|---|---|---|
| Height | 460 mm | 460 mm | = |
| Width | 290 mm | 290 mm | = |
| Depth | 270 mm | 270 mm | = |
| Weight | 8.6 kg | 8.9 kg | −0.3 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Photon Mono M5 better than Photon Mono M5s?
- Weight8.6 kg vs 8.9 kg+3%
Why is Photon Mono M5s better than Photon Mono M5?
- Resin print speed70 mm/h vs 105 mm/h+50%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 218 mm | 218 mm |
| Build depth (Y) | 123 mm | 122 mm |
| Build height (Z) | 200 mm | 200 mm |
| Build volume | 5.4 L | 5.3 L |
| Speed | ||
| Resin print speed | 70 mm/h | 105 mm/h |
| Print quality | ||
| Finest layer height | 0.01 mm | 0.01 mm |
| Thickest layer height | 0.15 mm | 0.15 mm |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Resin & LCD | ||
| LCD resolution class | 12K | 12K |
| LCD resolution (px) | 11520 × 5120 | 11520 × 5120 |
| LCD size | 10.1″ | 10.1″ |
| XY resolution | 34 µm | 34 µm |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | No | No |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| App control | Yes | Yes |
| Screen size | 4.3″ | 4.3″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | No |
| Size & power | ||
| Width | 290 mm | 290 mm |
| Depth | 270 mm | 270 mm |
| Height | 460 mm | 460 mm |
| Weight | 8.6 kg | 8.9 kg |
| Rated power | 100 W | 100 W |
