AnkerMakeFDM (bed-slinger)

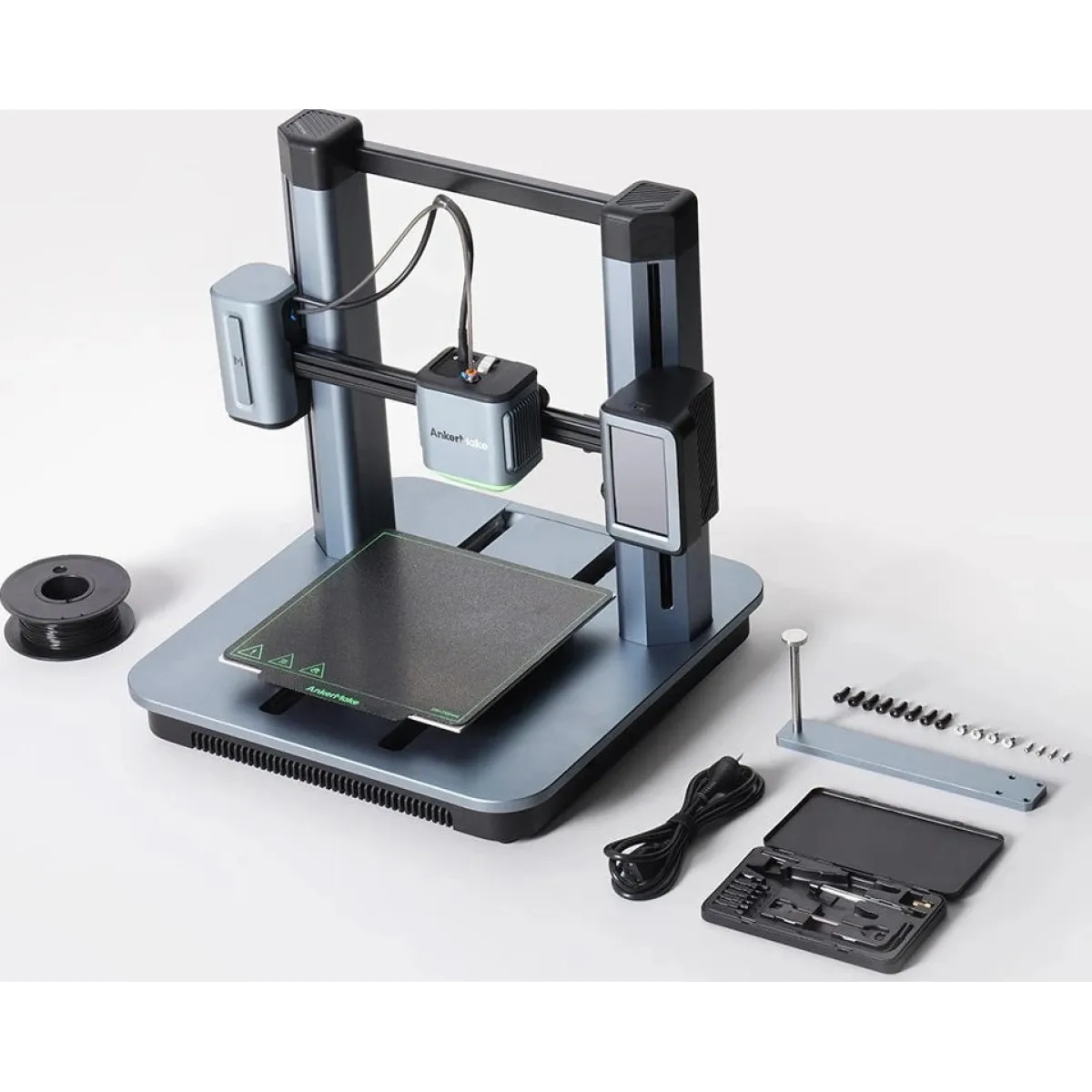

AnkerMake M5
AnkerMake M5 is a FDM (bed-slinger) released in October 2022. Key specs: technology FDM / FFF (filament), build volume 13.8 L, max print speed 250 mm/s, max nozzle temperature 260 °C.
6.1Score
Speed7.0
Print quality4.6
Material versatility2.5
Build volume5.7
Ease of use7.4
price range$340–420Reference price converted from EUR
- Released
- October 2022
- Brand
AnkerMake- Popularity
- #167 of 310
- Model numbers
- Anker AnkerMake M5 3D Printer
FDM / FFF (filament)Technology
13.8 LBuild volume
250 mm/sMax print speed
260 °CMax nozzle temperature
100 °CMax bed temperature
Spec guide
How it ranks among bed-slinger FDM printers of 2022
Build volume · 13.8 LBottom 38%Max print speed · 250 mm/sTop 25%Max nozzle temperature · 260 °CBottom 9%Max bed temperature · 100 °CBottom 13%
Compared with bed-slinger FDM printers released in 2022. Bars show the share of models it beats.
compared with other bed-slinger FDM printers
Why is M5 a good choice?
Number of supported materials: 8better than 80% of bed-slinger FDM printers
Weak points
Max bed temperature: 100 °Cworse than 88% of bed-slinger FDM printers
Max nozzle temperature: 260 °Cworse than 94% of bed-slinger FDM printers
Specifications
Full specifications
General
- Delivered as
- Partially assembled
- All-metal frame
- Yes
Build volume
- Build width (X)
- 235 mm
- Build depth (Y)
- 235 mm
- Build height (Z)
- 250 mm
- Build volume
- 13.8 L
Speed
- Max print speed
- 250 mm/s
Print quality
- Finest layer height
- 0.1 mm
- Thickest layer height
- 0.4 mm
- Vibration compensation (input shaping)
- Yes
- Automatic bed levelling
- Yes
Extruder & hotend
- Max nozzle temperature
- 260 °C
- Direct-drive extruder
- Yes
- Default nozzle
- 0.4 mm
- Nozzle material
- brass
- Swappable nozzle / hotend
- Yes
- Toolheads
- 1
- Nozzles
- 1
- Filament diameter
- 1.75 mm
- Number of supported materials
- 8
- Engineering materials (PA, PC, CF)
- No
Print bed
- Heated bed
- Yes
- Max bed temperature
- 100 °C
- Flexible magnetic build plate
- Yes
Connectivity & control
- Connectivity
- Wi-Fi, USB, Bluetooth
- Wi-Fi
- Yes
- Ethernet
- No
- USB
- Yes
- SD card
- No
- Bluetooth
- Yes
- App control
- Yes
- Cloud printing
- Yes
- Screen size
- 4.3″
- Touchscreen
- Yes
Features
- Built-in camera
- Yes
- Filament runout sensor
- Yes
- Power-loss recovery
- Yes
Size & power
- Width
- 502 mm
- Depth
- 438 mm
- Height
- 470 mm
- Weight
- 12.4 kg
- Rated power
- 350 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
