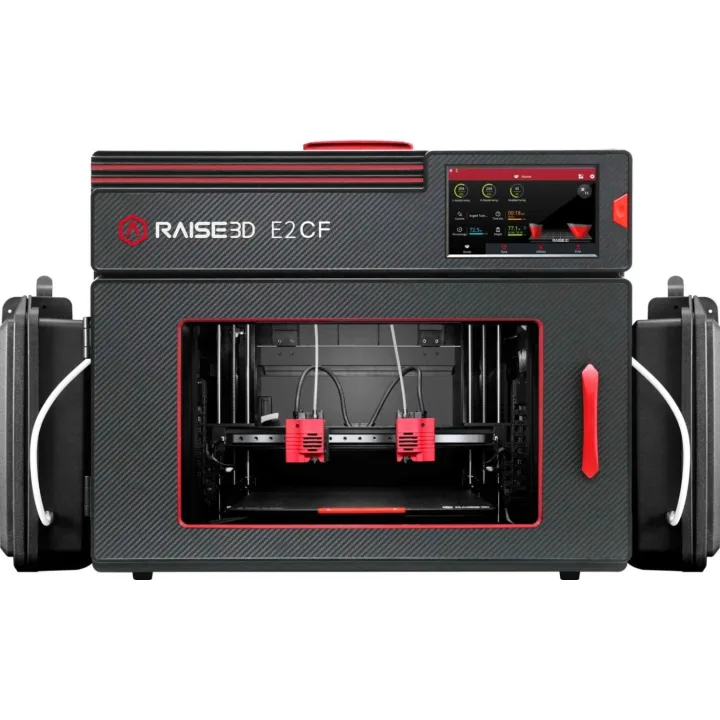

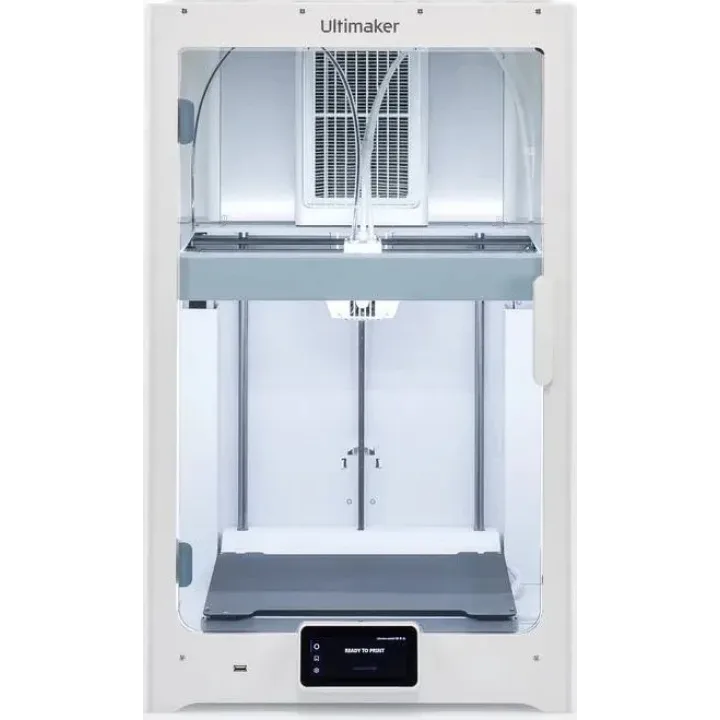

Raise3D E2 CF vs UltiMaker S7
What E2 CF does better (3) and where S7 wins (5) — every spec side by side.
Dimensions
Size comparison
E2 CFS7
| E2 CF | S7 | Difference | |
|---|---|---|---|
| Height | 465 mm | 800 mm | −335 mm |
| Width | 596 mm | 495 mm | +101 mm |
| Depth | 607 mm | 585 mm | +22 mm |
| Weight | 32.4 kg | 29.1 kg | +3.3 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is E2 CF better than S7?
- Max print speed150 mm/s vs 24 mm/s6.2×
- Built-in cameraYes · S7: No
- Number of supported materials4 vs 22×
Why is S7 better than E2 CF?
- Finest layer height0.1 mm vs 0.02 mm5×
- Build volume19 L vs 23.8 L+25%
- Max bed temperature110 °C vs 140 °C+27%
- Build height (Z)240 mm vs 300 mm+25%
- Weight32.4 kg vs 29.1 kg+11%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Build volume | ||
| Build width (X) | 330 mm | 330 mm |
| Build depth (Y) | 240 mm | 240 mm |
| Build height (Z) | 240 mm | 300 mm |
| Build volume | 19 L | 23.8 L |
| Speed | ||
| Max print speed | 150 mm/s | 24 mm/s |
| Print quality | ||
| Finest layer height | 0.1 mm | 0.02 mm |
| Thickest layer height | — | 0.4 mm |
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | — |
| Default nozzle | 0.4 mm | — |
| Supported nozzle sizes (mm) | 0.4, 0.8 | — |
| Toolheads | — | 1 |
| Nozzles | 2 | 2 |
| Filament diameter | 1.75 mm | 2.85 mm |
| Supported materials | ABS, PLA, HIPS, PVA | PVA, PLA |
| Number of supported materials | 4 | 2 |
| Engineering materials (PA, PC, CF) | No | No |
| Multi-colour | ||
| Multi-colour printing | — | Yes |
| Max colours / materials | — | 2 |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 110 °C | 140 °C |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Connectivity & control | ||
| Connectivity | Wi-Fi, Ethernet, USB | Wi-Fi, Ethernet, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | Yes |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| Screen size | — | 4.7″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | Yes | No |
| Filament runout sensor | Yes | — |
| Power-loss recovery | Yes | — |
| Size & power | ||
| Width | 596 mm | 495 mm |
| Depth | 607 mm | 585 mm |
| Height | 465 mm | 800 mm |
| Weight | 32.4 kg | 29.1 kg |
| Rated power | 350 W | 500 W |
| Noise level | 50 dB | 50 dB |
