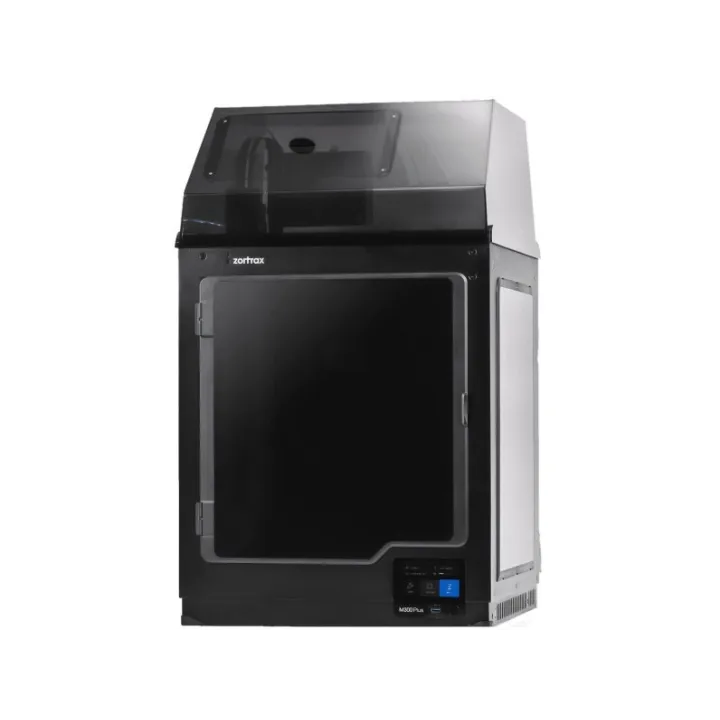

JGAURORA A8S vs Zortrax M300 Dual
What A8S does better (5) and where M300 Dual wins (5) — every spec side by side.
Dimensions
Size comparison
A8SM300 Dual
| A8S | M300 Dual | Difference | |
|---|---|---|---|
| Height | 720 mm | 665 mm | +55 mm |
| Width | 740 mm | 473 mm | +267 mm |
| Depth | 560 mm | 570 mm | −10 mm |
| Weight | 32 kg | 27 kg | +5 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is A8S better than M300 Dual?
- Build volume26.2 L vs 21.1 L+24%
- Finest layer height0.05 mm vs 0.1 mm2×
- Max bed temperature110 °C vs 105 °C+5%
- Build width (X)350 mm vs 265 mm+32%
- Screen size4.3″ vs 4″+7%
Why is M300 Dual better than A8S?
- Engineering materials (PA, PC, CF)No · A8S: Yes
- Max nozzle temperature260 °C vs 310 °C+19%
- Number of supported materials4 vs 6+50%
- Weight32 kg vs 27 kg+19%
- Build depth (Y)250 mm vs 265 mm+6%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | — | CoreXY / XY-head |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 350 mm | 265 mm |
| Build depth (Y) | 250 mm | 265 mm |
| Build height (Z) | 300 mm | 300 mm |
| Build volume | 26.2 L | 21.1 L |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.1 mm |
| Thickest layer height | 0.3 mm | — |
| Extruder & hotend | ||
| Max nozzle temperature | 260 °C | 310 °C |
| Default nozzle | 0.4 mm | 0.4 mm |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, PLA, TPU, etc | Z-ULTRAT, Z-PETG, Z-GLASS, Z-PLA, Z-NYLON, Z-SUPPORT Premium |
| Number of supported materials | 4 | 6 |
| Engineering materials (PA, PC, CF) | No | Yes |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 110 °C | 105 °C |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Connectivity & control | ||
| Connectivity | USB, SD card | Wi-Fi, Ethernet, USB |
| Wi-Fi | — | Yes |
| Ethernet | — | Yes |
| USB | Yes | Yes |
| SD card | Yes | — |
| Screen size | 4.3″ | 4″ |
| Touchscreen | Yes | — |
| Size & power | ||
| Width | 740 mm | 473 mm |
| Depth | 560 mm | 570 mm |
| Height | 720 mm | 665 mm |
| Weight | 32 kg | 27 kg |
