- 3D DigiLab 3D45 vs mCreate

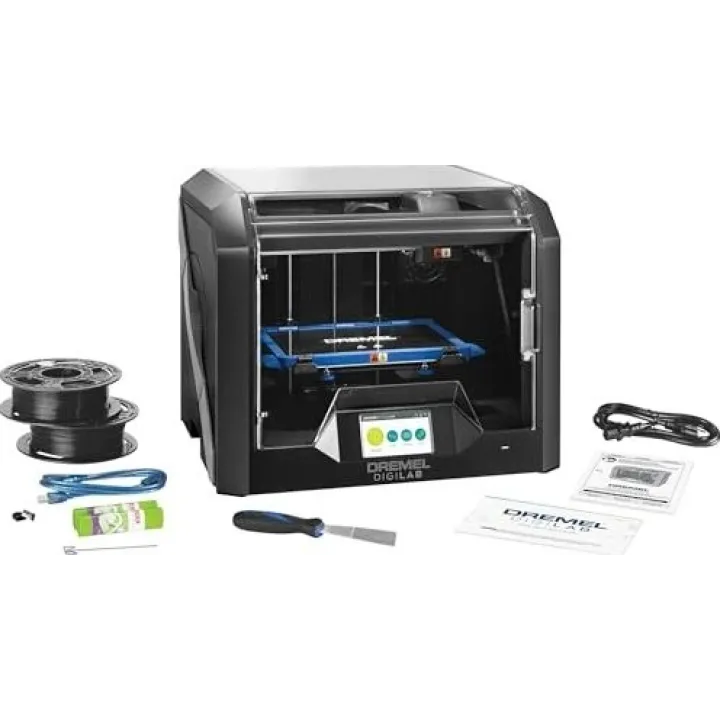

Dremel 3D DigiLab 3D45 vs Makeblock mCreate
What 3D DigiLab 3D45 does better (1) and where mCreate wins (4) — every spec side by side.
vs
2.8Build volume6.2
Dimensions
Size comparison
3D DigiLab 3D45mCreate
| 3D DigiLab 3D45 | mCreate | Difference | |
|---|---|---|---|
| Height | 406 mm | 550 mm | −144 mm |
| Width | 515 mm | 445 mm | +70 mm |
| Depth | 394 mm | 485 mm | −91 mm |
| Weight | 19.4 kg | 11 kg | +8.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is 3D DigiLab 3D45 better than mCreate?
- Build width (X)255 mm vs 220 mm+16%
Why is mCreate better than 3D DigiLab 3D45?
- Build volume6.7 L vs 14.3 L2.1×
- Build height (Z)170 mm vs 295 mm+74%
- Weight19.4 kg vs 11 kg+76%
- Build depth (Y)155 mm vs 220 mm+42%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | — | Bed-slinger (i3-style) |
| Delivered as | — | Partially assembled |
| All-metal frame | — | Yes |
| Build volume | ||
| Build width (X) | 255 mm | 220 mm |
| Build depth (Y) | 155 mm | 220 mm |
| Build height (Z) | 170 mm | 295 mm |
| Build volume | 6.7 L | 14.3 L |
| Speed | ||
| Max print speed | — | 150 mm/s |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.05 mm |
| Thickest layer height | 0.1 mm | 0.3 mm |
| Extruder & hotend | ||
| Max nozzle temperature | — | 260 °C |
| Direct-drive extruder | — | Yes |
| Default nozzle | — | 0.4 mm |
| Nozzle material | — | brass |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | — | PLA, PP, PVA, TPU |
| Number of supported materials | — | 4 |
| Engineering materials (PA, PC, CF) | — | No |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | — | 80 °C |
| Connectivity & control | ||
| Connectivity | Wi-Fi, Ethernet, USB, SD card | USB, SD card |
| Wi-Fi | Yes | — |
| Ethernet | Yes | — |
| USB | Yes | Yes |
| SD card | Yes | Yes |
| Screen size | — | 3.5″ |
| Touchscreen | — | Yes |
| Features | ||
| Built-in camera | — | No |
| Filament runout sensor | — | Yes |
| Power-loss recovery | — | Yes |
| Size & power | ||
| Width | 515 mm | 445 mm |
| Depth | 394 mm | 485 mm |
| Height | 406 mm | 550 mm |
| Weight | 19.4 kg | 11 kg |
| Rated power | — | 300 W |
