- CR-10 Smart PRO vs Ender 5 Max

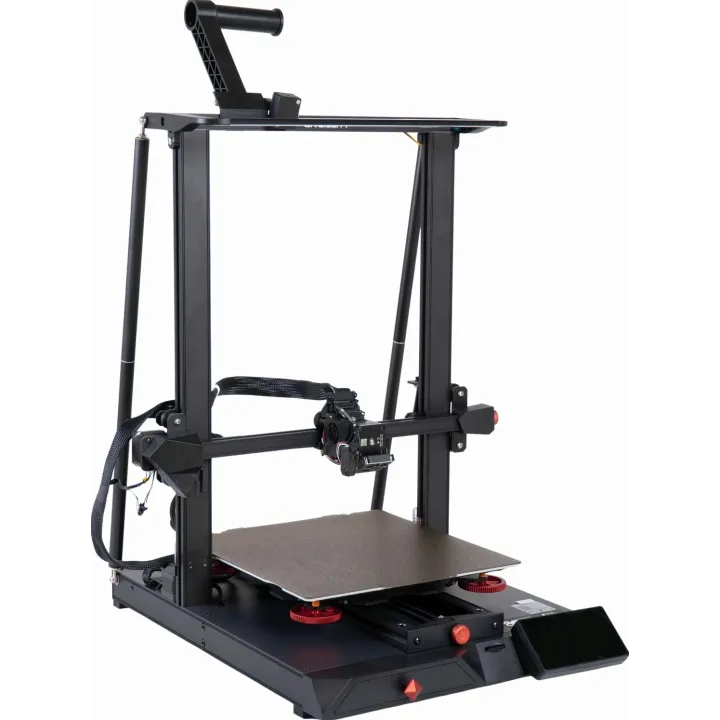

Creality CR-10 Smart PRO vs Creality Ender 5 Max
What CR-10 Smart PRO does better (3) and where Ender 5 Max wins (5) — every spec side by side.
vs
2.7Speed8.3
4.8Print quality7.0
6.4Material versatility4.8
3.3Build volume5.0
6.5Ease of use6.1
Dimensions
Size comparison
CR-10 Smart PROEnder 5 Max
| CR-10 Smart PRO | Ender 5 Max | Difference | |
|---|---|---|---|
| Height | 648 mm | 850 mm | −202 mm |
| Width | 578 mm | 721 mm | −143 mm |
| Depth | 522 mm | 649 mm | −127 mm |
| Weight | 14 kg | 25.9 kg | −11.9 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is CR-10 Smart PRO better than Ender 5 Max?
- Heated bedYes · Ender 5 Max: No
- Weight14 kg vs 25.9 kg+85%
- Number of supported materials6 vs 5+20%
Why is Ender 5 Max better than CR-10 Smart PRO?
- Max print speed100 mm/s vs 700 mm/s7×
- Build volume36 L vs 64 L+78%
- Finest layer height0.1 mm vs 0.05 mm2×
- Build width (X)300 mm vs 400 mm+33%
- Build depth (Y)300 mm vs 400 mm+33%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | Bed-slinger (i3-style) | CoreXY / XY-head |
| Delivered as | Partially assembled | Partially assembled |
| All-metal frame | Yes | Yes |
| Build volume | ||
| Build width (X) | 300 mm | 400 mm |
| Build depth (Y) | 300 mm | 400 mm |
| Build height (Z) | 400 mm | 400 mm |
| Build volume | 36 L | 64 L |
| Speed | ||
| Max print speed | 100 mm/s | 700 mm/s |
| Max acceleration | — | 20,000 mm/s² |
| Print quality | ||
| Finest layer height | 0.1 mm | 0.05 mm |
| Thickest layer height | 0.4 mm | 0.3 mm |
| Vibration compensation (input shaping) | — | Yes |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 300 °C |
| Direct-drive extruder | Yes | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.4, 0.8 |
| Nozzle material | copper | — |
| Swappable nozzle / hotend | Yes | Yes |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | Carbon, PA, PETG, PLA, TPU, Wood | ABS, ASA, PA, PETG, PLA |
| Number of supported materials | 6 | 5 |
| Engineering materials (PA, PC, CF) | Yes | Yes |
| Print bed | ||
| Heated bed | Yes | No |
| Max bed temperature | 100 °C | 100 °C |
| Enclosure | ||
| Enclosed build chamber | — | No |
| Actively heated chamber | — | No |
| Chamber light | Yes | Yes |
| Connectivity & control | ||
| Connectivity | Wi-Fi, Ethernet, SD card | Wi-Fi, USB, Ethernet |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | Yes |
| USB | No | Yes |
| SD card | Yes | No |
| Bluetooth | Yes | No |
| App control | Yes | — |
| Screen size | 4.3″ | 4.3″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | Yes | — |
| Camera resolution | 0.9 MP | — |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | Yes |
| Silent stepper drivers | Yes | — |
| Size & power | ||
| Width | 578 mm | 721 mm |
| Depth | 522 mm | 649 mm |
| Height | 648 mm | 850 mm |
| Weight | 14 kg | 25.9 kg |
| Rated power | 350 W | 1,250 W |
