- Kobra 3 Max vs Ender 5 Max

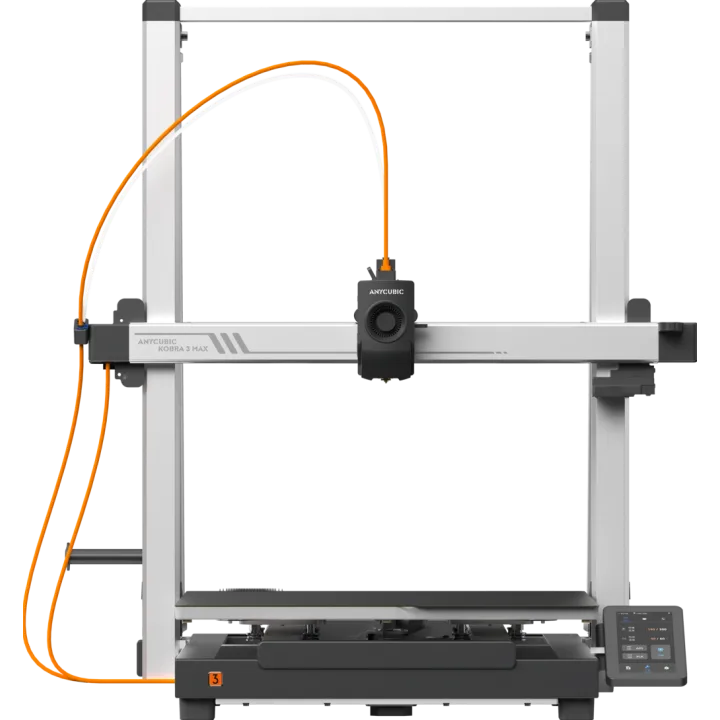

Anycubic Kobra 3 Max vs Creality Ender 5 Max
What Kobra 3 Max does better (6) and where Ender 5 Max wins (4) — every spec side by side.
vs
9.1Speed8.3
6.2Print quality7.0
4.2Material versatility4.8
6.9Build volume5.0
4.9Ease of use6.1
Dimensions
Size comparison
Kobra 3 MaxEnder 5 Max
| Kobra 3 Max | Ender 5 Max | Difference | |
|---|---|---|---|
| Height | 753 mm | 850 mm | −97 mm |
| Width | 706 mm | 721 mm | −15 mm |
| Depth | 640.7 mm | 649 mm | −8.3 mm |
| Weight | 19 kg | 25.9 kg | −6.9 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kobra 3 Max better than Ender 5 Max?
- Build volume88.2 L vs 64 L+38%
- Heated bedYes · Ender 5 Max: No
- Build height (Z)500 mm vs 400 mm+25%
- Weight19 kg vs 25.9 kg+36%
- Build width (X)420 mm vs 400 mm+5%
- Build depth (Y)420 mm vs 400 mm+5%
Why is Ender 5 Max better than Kobra 3 Max?
- Engineering materials (PA, PC, CF)No · Kobra 3 Max: Yes
- Max print speed600 mm/s vs 700 mm/s+17%
- Max bed temperature90 °C vs 100 °C+11%
- Number of supported materials4 vs 5+25%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | Bed-slinger (i3-style) | CoreXY / XY-head |
| Delivered as | Partially assembled | Partially assembled |
| All-metal frame | Yes | Yes |
| Build volume | ||
| Build width (X) | 420 mm | 400 mm |
| Build depth (Y) | 420 mm | 400 mm |
| Build height (Z) | 500 mm | 400 mm |
| Build volume | 88.2 L | 64 L |
| Speed | ||
| Max print speed | 600 mm/s | 700 mm/s |
| Max acceleration | — | 20,000 mm/s² |
| Print quality | ||
| Finest layer height | — | 0.05 mm |
| Thickest layer height | — | 0.3 mm |
| Vibration compensation (input shaping) | — | Yes |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 300 °C |
| Direct-drive extruder | Yes | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.4, 0.8 |
| Swappable nozzle / hotend | — | Yes |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, PETG, PLA, TPU | ABS, ASA, PA, PETG, PLA |
| Number of supported materials | 4 | 5 |
| Engineering materials (PA, PC, CF) | No | Yes |
| Multi-colour | ||
| Multi-colour printing | Yes | — |
| Max colours / materials | 4 | — |
| Multi-colour system | ACE Pro | — |
| Print bed | ||
| Heated bed | Yes | No |
| Max bed temperature | 90 °C | 100 °C |
| Enclosure | ||
| Enclosed build chamber | — | No |
| Actively heated chamber | — | No |
| Chamber light | — | Yes |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB, Ethernet |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | Yes |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| Screen size | — | 4.3″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | — |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | Yes |
| Built-in filament drying | Yes | — |
| Size & power | ||
| Width | 706 mm | 721 mm |
| Depth | 641 mm | 649 mm |
| Height | 753 mm | 850 mm |
| Weight | 19 kg | 25.9 kg |
| Rated power | 1,100 W | 1,250 W |
