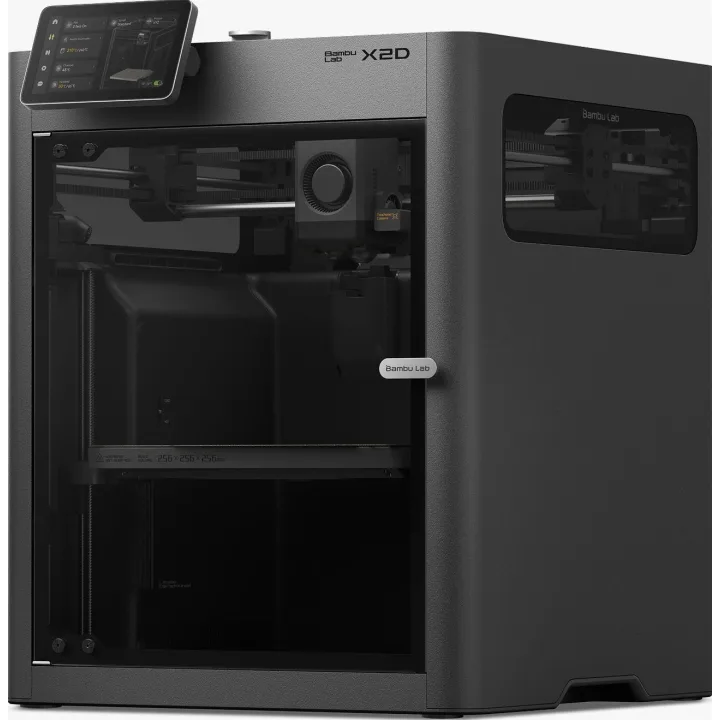

Bambu Lab X2D vs Flashforge Creator 5
What X2D does better (5) and where Creator 5 wins (4) — every spec side by side.
Dimensions
Size comparison
X2DCreator 5
| X2D | Creator 5 | Difference | |
|---|---|---|---|
| Height | 478 mm | 443 mm | +35 mm |
| Width | 392 mm | 520 mm | −128 mm |
| Depth | 406 mm | 710 mm | −304 mm |
| Weight | 16.2 kg | 14 kg | +2.2 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is X2D better than Creator 5?
- Max print speed1,000 mm/s vs 300 mm/s3.3×
- EthernetYes · Creator 5: No
- TouchscreenYes · Creator 5: No
- Number of supported materials14 vs 10+40%
- Screen size5″ vs 4″+25%
Why is Creator 5 better than X2D?
- Nozzles2 vs 42×
- Toolheads1 vs 44×
- Max nozzle temperature300 °C vs 320 °C+7%
- Weight16.2 kg vs 14 kg+16%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | CoreXY / XY-head | CoreXY / XY-head |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 256 mm | 256 mm |
| Build depth (Y) | 256 mm | 256 mm |
| Build height (Z) | 260 mm | 256 mm |
| Build volume | 17 L | 16.8 L |
| Speed | ||
| Max print speed | 1,000 mm/s | 300 mm/s |
| Max acceleration | 20,000 mm/s² | — |
| Max volumetric flow | 40 mm³/s | — |
| Print quality | ||
| Automatic bed levelling | — | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 320 °C |
| Direct-drive extruder | Yes | — |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | 0.2, 0.4, 0.6, 0.8 | — |
| Swappable nozzle / hotend | Yes | — |
| Toolheads | 1 | 4 |
| Nozzles | 2 | 4 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Filament cutter | Yes | — |
| Supported materials | ABS, ASA, Carbon, PA, PA-CF, PA-GF, PC, PET, PETG, PETG-CF, PLA, PLA-CF, PVA, TPU | BVOH, PETG, PETG-CF, PLA, PLA-CF, PVA, SILK, TPU-64D, TPU-90A, TPU-95A |
| Number of supported materials | 14 | 10 |
| Engineering materials (PA, PC, CF) | Yes | Yes |
| Multi-colour | ||
| Multi-colour printing | Yes | Yes |
| Max colours / materials | 4 | 4 |
| Multi-colour system | AMS 2 Pro | toolchanger |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 120 °C | 120 °C |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Actively heated chamber | Yes | — |
| Air filter (carbon / HEPA) | Yes | — |
| Chamber light | Yes | Yes |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | No |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| App control | Yes | — |
| Cloud printing | — | Yes |
| Screen size | 5″ | 4″ |
| Touchscreen | Yes | No |
| Features | ||
| Built-in camera | Yes | Yes |
| Camera resolution | 2.1 MP | — |
| Filament runout sensor | — | Yes |
| Size & power | ||
| Width | 392 mm | 520 mm |
| Depth | 406 mm | 710 mm |
| Height | 478 mm | 443 mm |
| Weight | 16.2 kg | 14 kg |
| Rated power | 1,600 W | 700 W |
