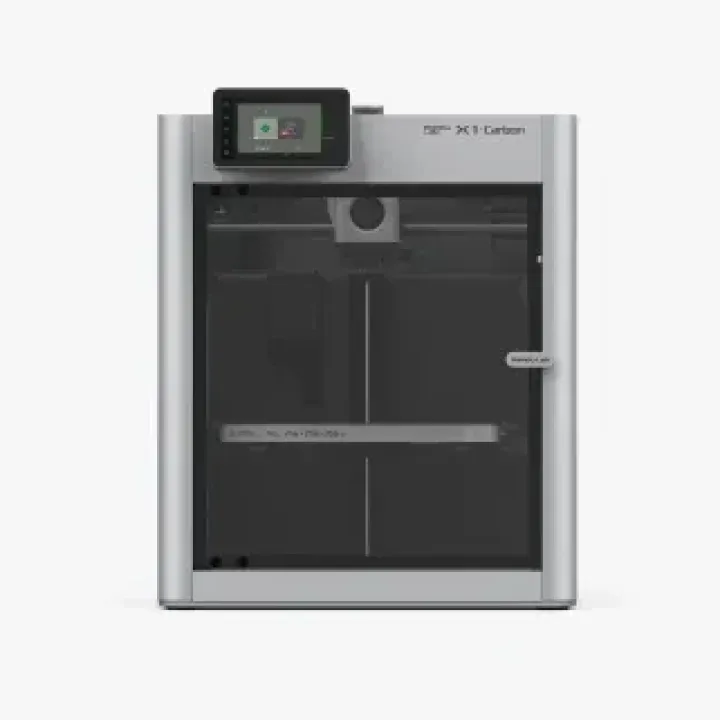

Bambu Lab X1-Carbon vs Bambu Lab X1E
What X1-Carbon does better (1) and where X1E wins (3) — every spec side by side.
Dimensions
Size comparison
X1-CarbonX1E
| X1-Carbon | X1E | Difference | |
|---|---|---|---|
| Height | 458 mm | 457 mm | +1 mm |
| Width | 386 mm | 389 mm | −3 mm |
| Depth | 389 mm | 389 mm | = |
| Weight | 13 kg | 16 kg | −3.1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is X1-Carbon better than X1E?
- Weight13 kg vs 16 kg+24%
Why is X1E better than X1-Carbon?
- Max nozzle temperature300 °C vs 320 °C+7%
- EthernetNo · X1-Carbon: Yes
- Number of supported materials10 vs 13+30%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | CoreXY / XY-head | CoreXY / XY-head |
| Delivered as | Fully assembled | Fully assembled |
| All-metal frame | Yes | Yes |
| Build volume | ||
| Build width (X) | 256 mm | 256 mm |
| Build depth (Y) | 256 mm | 256 mm |
| Build height (Z) | 256 mm | 256 mm |
| Build volume | 16.8 L | 16.8 L |
| Speed | ||
| Max print speed | 500 mm/s | 500 mm/s |
| Max acceleration | 20,000 mm/s² | 20,000 mm/s² |
| Max volumetric flow | 32 mm³/s | 32 mm³/s |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.05 mm |
| Thickest layer height | 0.4 mm | 0.4 mm |
| Vibration compensation (input shaping) | Yes | Yes |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 320 °C |
| Direct-drive extruder | Yes | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Nozzle material | hardened steel | hardened steel |
| Swappable nozzle / hotend | Yes | Yes |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Filament cutter | Yes | Yes |
| Supported materials | ABS, ASA, Carbon, PA, PC, PET, PETG, PLA, PVA, TPU | ABS, ASA, BVOH, Carbon, PA, PC, PET, PETG, PLA, PPA, PPS, PVA, TPU |
| Number of supported materials | 10 | 13 |
| Engineering materials (PA, PC, CF) | Yes | Yes |
| Multi-colour | ||
| Multi-colour printing | Yes | Yes |
| Max colours / materials | 4 | 4 |
| Multi-colour system | AMS | AMS |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 110 °C | 110 °C |
| Flexible magnetic build plate | Yes | Yes |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Actively heated chamber | — | Yes |
| Air filter (carbon / HEPA) | Yes | Yes |
| Chamber light | Yes | Yes |
| Door sensor | Yes | Yes |
| Connectivity & control | ||
| Connectivity | Wi-Fi, SD card, Bluetooth | Wi-Fi, Ethernet, SD card, Bluetooth |
| Wi-Fi | Yes | Yes |
| Ethernet | No | Yes |
| USB | No | No |
| SD card | Yes | Yes |
| Bluetooth | Yes | Yes |
| App control | Yes | Yes |
| Screen size | 5″ | 5″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | Yes | Yes |
| Camera resolution | 2.1 MP | 2.1 MP |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | Yes |
| Silent stepper drivers | Yes | Yes |
| Size & power | ||
| Width | 386 mm | 389 mm |
| Depth | 389 mm | 389 mm |
| Height | 458 mm | 457 mm |
| Weight | 13 kg | 16 kg |
| Rated power | 1,000 W | 1,000 W |
