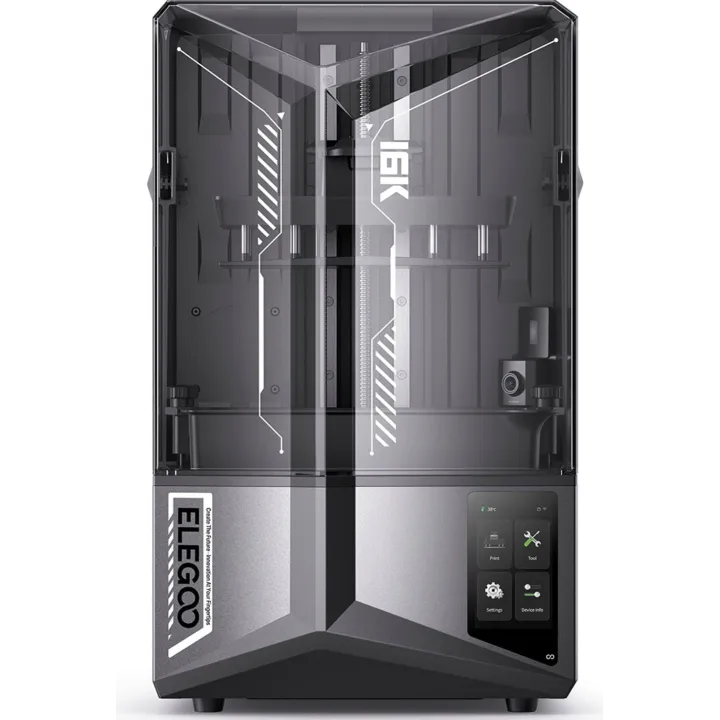

Anycubic Photon Mono M7 Pro vs Elegoo Saturn 4 Ultra 16K
What Photon Mono M7 Pro does better (7) and where Saturn 4 Ultra 16K wins (5) — every spec side by side.
vs
6.4Speed7.1
8.2Print quality9.3
5.9Material versatility5.9
6.5Build volume5.6
5.9Ease of use7.6
Dimensions
Size comparison
Photon Mono M7 ProSaturn 4 Ultra 16K
| Photon Mono M7 Pro | Saturn 4 Ultra 16K | Difference | |
|---|---|---|---|
| Height | 520 mm | 548 mm | −28 mm |
| Width | 310 mm | 329 mm | −19 mm |
| Depth | 315 mm | 327 mm | −12 mm |
| Weight | 12.8 kg | 16.1 kg | −3.3 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Photon Mono M7 Pro better than Saturn 4 Ultra 16K?
- Build volume6.5 L vs 5.5 L+18%
- Delivered asFully assembled vs Partially assembled
- Build height (Z)230 mm vs 220 mm+5%
- Weight12.8 kg vs 16.1 kg+26%
- Screen size5″ vs 4″+25%
- Build depth (Y)126 mm vs 118 mm+6%
- Build width (X)223 mm vs 212 mm+5%
Why is Saturn 4 Ultra 16K better than Photon Mono M7 Pro?
- XY resolution34 µm vs 19 µm+79%
- Built-in cameraNo · Photon Mono M7 Pro: Yes
- Resin print speed130 mm/h vs 150 mm/h+15%
- LCD resolution class14K vs 16K+14%
- EthernetNo · Photon Mono M7 Pro: Yes
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | Partially assembled |
| Build volume | ||
| Build width (X) | 223 mm | 212 mm |
| Build depth (Y) | 126 mm | 118 mm |
| Build height (Z) | 230 mm | 220 mm |
| Build volume | 6.5 L | 5.5 L |
| Speed | ||
| Resin print speed | 130 mm/h | 150 mm/h |
| Print quality | ||
| Finest layer height | 0.01 mm | 0.01 mm |
| Thickest layer height | 0.15 mm | 0.2 mm |
| Automatic bed levelling | Yes | — |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Air filter (carbon / HEPA) | Yes | — |
| Resin & LCD | ||
| LCD resolution class | 14K | 16K |
| LCD resolution (px) | 13320 × 5120 | 15120 × 6230 |
| LCD size | 10.1″ | 10″ |
| XY resolution | 34 µm | 19 µm |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | No | Yes |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| App control | Yes | — |
| Screen size | 5″ | 4″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | Yes |
| Size & power | ||
| Width | 310 mm | 329 mm |
| Depth | 315 mm | 327 mm |
| Height | 520 mm | 548 mm |
| Weight | 12.8 kg | 16.1 kg |
