- Photon M3 Max vs HALOT-MAGE

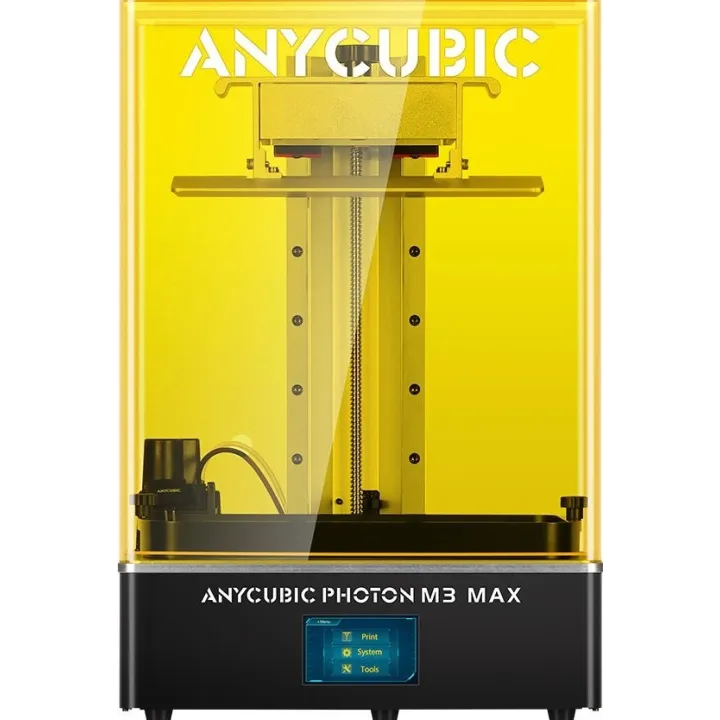

Anycubic Photon M3 Max vs Creality HALOT-MAGE
What Photon M3 Max does better (6) and where HALOT-MAGE wins (3) — every spec side by side.
vs
5.0Print quality4.3
5.9Material versatility5.9
8.3Build volume6.9
4.4Ease of use4.0
Dimensions
Size comparison
Photon M3 MaxHALOT-MAGE
| Photon M3 Max | HALOT-MAGE | Difference | |
|---|---|---|---|
| Height | 596 mm | 608 mm | −12 mm |
| Width | 400 mm | 333 mm | +67 mm |
| Depth | 408 mm | 270 mm | +138 mm |
| Weight | 21 kg | 12 kg | +9 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Photon M3 Max better than HALOT-MAGE?
- Build volume14.7 L vs 6.7 L2.2×
- Finest layer height0.01 mm vs 0.05 mm5×
- Build height (Z)300 mm vs 230 mm+30%
- LCD size13.6″ vs 10.3″+32%
- Build width (X)298 mm vs 228 mm+31%
- Build depth (Y)164 mm vs 128 mm+28%
Why is HALOT-MAGE better than Photon M3 Max?
- XY resolution46 µm vs 29.7 µm+55%
- LCD resolution class7K vs 8K+14%
- Weight21 kg vs 12 kg+75%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 298 mm | 228 mm |
| Build depth (Y) | 164 mm | 128 mm |
| Build height (Z) | 300 mm | 230 mm |
| Build volume | 14.7 L | 6.7 L |
| Speed | ||
| Resin print speed | 60 mm/h | — |
| Print quality | ||
| Finest layer height | 0.01 mm | 0.05 mm |
| Thickest layer height | 0.15 mm | 0.15 mm |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Air filter (carbon / HEPA) | — | Yes |
| Resin & LCD | ||
| LCD resolution class | 7K | 8K |
| LCD resolution (px) | 6480 × 3600 | 7680 × 4320 |
| LCD size | 13.6″ | 10.3″ |
| XY resolution | 46 µm | 29.7 µm |
| Connectivity & control | ||
| Connectivity | USB | USB |
| Wi-Fi | No | No |
| Ethernet | No | No |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| App control | Yes | — |
| Screen size | 4.3″ | 4.3″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | No |
| Size & power | ||
| Width | 400 mm | 333 mm |
| Depth | 408 mm | 270 mm |
| Height | 596 mm | 608 mm |
| Weight | 21 kg | 12 kg |
| Rated power | 120 W | 100 W |
