- Kobra 3 Max V2 vs Z3

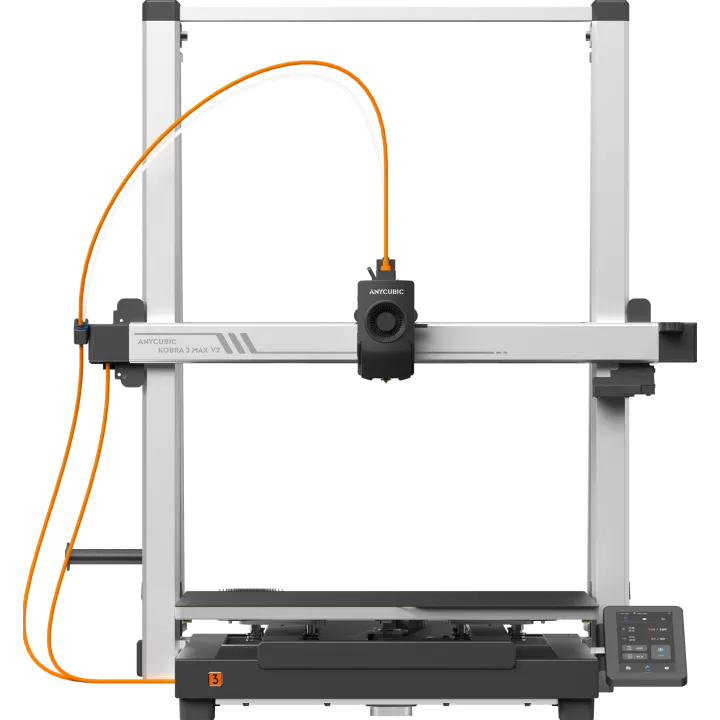

Anycubic Kobra 3 Max V2 vs Zaxe Z3
What Kobra 3 Max V2 does better (4) and where Z3 wins (2) — every spec side by side.
6.9Build volume3.7
Dimensions
Size comparison
Kobra 3 Max V2Z3
| Kobra 3 Max V2 | Z3 | Difference | |
|---|---|---|---|
| Height | 753 mm | 667 mm | +86 mm |
| Width | 706 mm | 585 mm | +121 mm |
| Depth | 640 mm | 665 mm | −25 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is Kobra 3 Max V2 better than Z3?
- Build volume88.2 L vs 42 L2.1×
- Build height (Z)500 mm vs 350 mm+43%
- Build depth (Y)420 mm vs 300 mm+40%
- Build width (X)420 mm vs 400 mm+5%
Why is Z3 better than Kobra 3 Max V2?
- Engineering materials (PA, PC, CF)No · Kobra 3 Max V2: Yes
- Number of supported materials3 vs 4+33%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | — |
| Delivered as | Kit | — |
| Build volume | ||
| Build width (X) | 420 mm | 400 mm |
| Build depth (Y) | 420 mm | 300 mm |
| Build height (Z) | 500 mm | 350 mm |
| Build volume | 88.2 L | 42 L |
| Speed | ||
| Max print speed | 600 mm/s | — |
| Max acceleration | 10,000 mm/s² | — |
| Print quality | ||
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | 350 °C | — |
| Direct-drive extruder | Yes | — |
| Default nozzle | 0.4 mm | — |
| Supported nozzle sizes (mm) | 0.4, 0.8 | — |
| Filament diameter | — | 1.75 mm |
| Supported materials | PLA, PETG, TPU | ABS, PLA, PETG, Nylon |
| Number of supported materials | 3 | 4 |
| Engineering materials (PA, PC, CF) | No | Yes |
| Multi-colour | ||
| Multi-colour printing | Yes | — |
| Max colours / materials | 16 | — |
| Multi-colour system | ACE 2 Pro | — |
| Print bed | ||
| Heated bed | Yes | — |
| Max bed temperature | 90 °C | — |
| Enclosure | ||
| Actively heated chamber | No | — |
| Connectivity & control | ||
| Connectivity | Ethernet | — |
| Wi-Fi | Yes | — |
| Ethernet | Yes | — |
| USB | No | — |
| SD card | No | — |
| Bluetooth | No | — |
| App control | Yes | — |
| Screen size | 4.3″ | — |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | Yes | — |
| Size & power | ||
| Width | 706 mm | 585 mm |
| Depth | 640 mm | 665 mm |
| Height | 753 mm | 667 mm |
| Weight | 22.5 kg | — |
