QIDIFDM (bed-slinger)

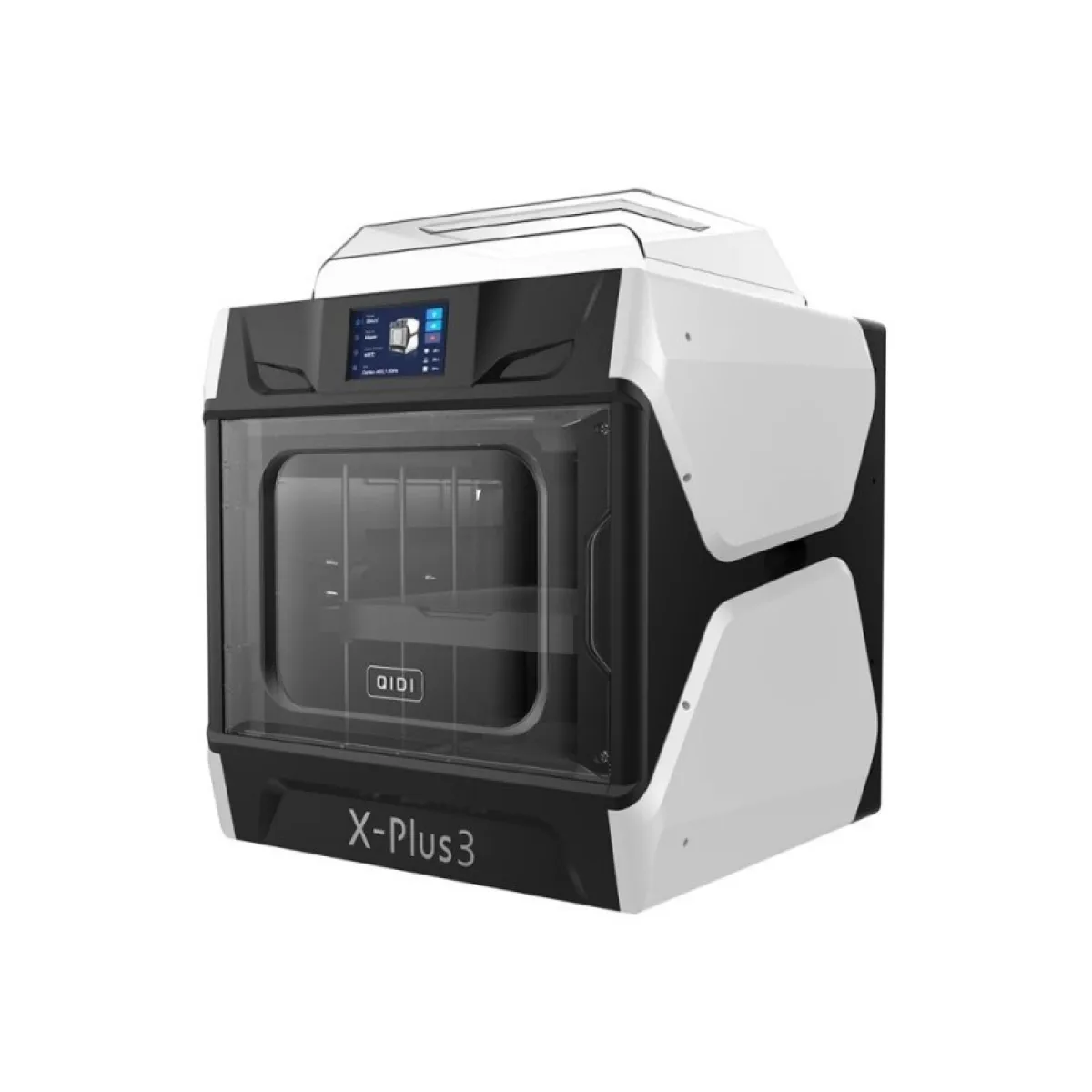

QIDI X-PLUS 3
QIDI X-PLUS 3 is a FDM (bed-slinger) released in 2023. Key specs: technology FDM / FFF (filament), build volume 21.2 L, max print speed 600 mm/s, max nozzle temperature 350 °C.
9.4Score
Speed9.0
Material versatility8.6
Build volume7.6
Ease of use9.2
price range$740–920
- Year
- 2023
- Brand
QIDI- Popularity
- #221 of 286
FDM / FFF (filament)Technology
21.2 LBuild volume
600 mm/sMax print speed
350 °CMax nozzle temperature
120 °CMax bed temperature
Spec guide
How it ranks among bed-slinger FDM printers of 2023
Build volume · 21.2 LTop 33%Max print speed · 600 mm/sTop 20%Max nozzle temperature · 350 °CTop 21%Max bed temperature · 120 °CTop 15%
Compared with bed-slinger FDM printers released in 2023. Bars show the share of models it beats.
compared with other bed-slinger FDM printers
Why is X-PLUS 3 a good choice?
Max print speed: 600 mm/sbetter than 90% of bed-slinger FDM printers
Max nozzle temperature: 350 °Cbetter than 87% of bed-slinger FDM printers
Build volume: 21.2 Lbetter than 75% of bed-slinger FDM printers
Max bed temperature: 120 °Cbetter than 81% of bed-slinger FDM printers
Number of supported materials: 14better than 95% of bed-slinger FDM printers
Specifications
Full specifications
Build volume
- Build width (X)
- 280 mm
- Build depth (Y)
- 280 mm
- Build height (Z)
- 270 mm
- Build volume
- 21.2 L
Speed
- Max print speed
- 600 mm/s
- Max volumetric flow
- 35 mm³/s
Print quality
- Automatic bed levelling
- Yes
Extruder & hotend
- Max nozzle temperature
- 350 °C
- Default nozzle
- 0.4 mm
- Supported nozzle sizes (mm)
- 0.4, 0.8
- Nozzle material
- hardened steel
- Filament diameter
- 1.75 mm
- Supported materials
- PET-CF, PA12-CF, compatible: PLA, ABS, TPU, ASA, PETG, PET-CF, PA12-CF, PC, UltraPA, Nylon, Carbon Fiber, etc.
- Number of supported materials
- 14
- Engineering materials (PA, PC, CF)
- Yes
Print bed
- Heated bed
- Yes
- Max bed temperature
- 120 °C
Enclosure
- Actively heated chamber
- Yes
- Max chamber temperature
- 65 °C
Connectivity & control
- Connectivity
- Wi-Fi, Ethernet, USB
- Wi-Fi
- Yes
- Ethernet
- Yes
- USB
- Yes
- Screen size
- 5″
- Touchscreen
- Yes
Features
- Filament runout sensor
- Yes
Size & power
- Width
- 511 mm
- Depth
- 527 mm
- Height
- 529 mm
- Weight
- 19.5 kg
- Rated power
- 800 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
