PrusaMulti-nozzle & toolchanger

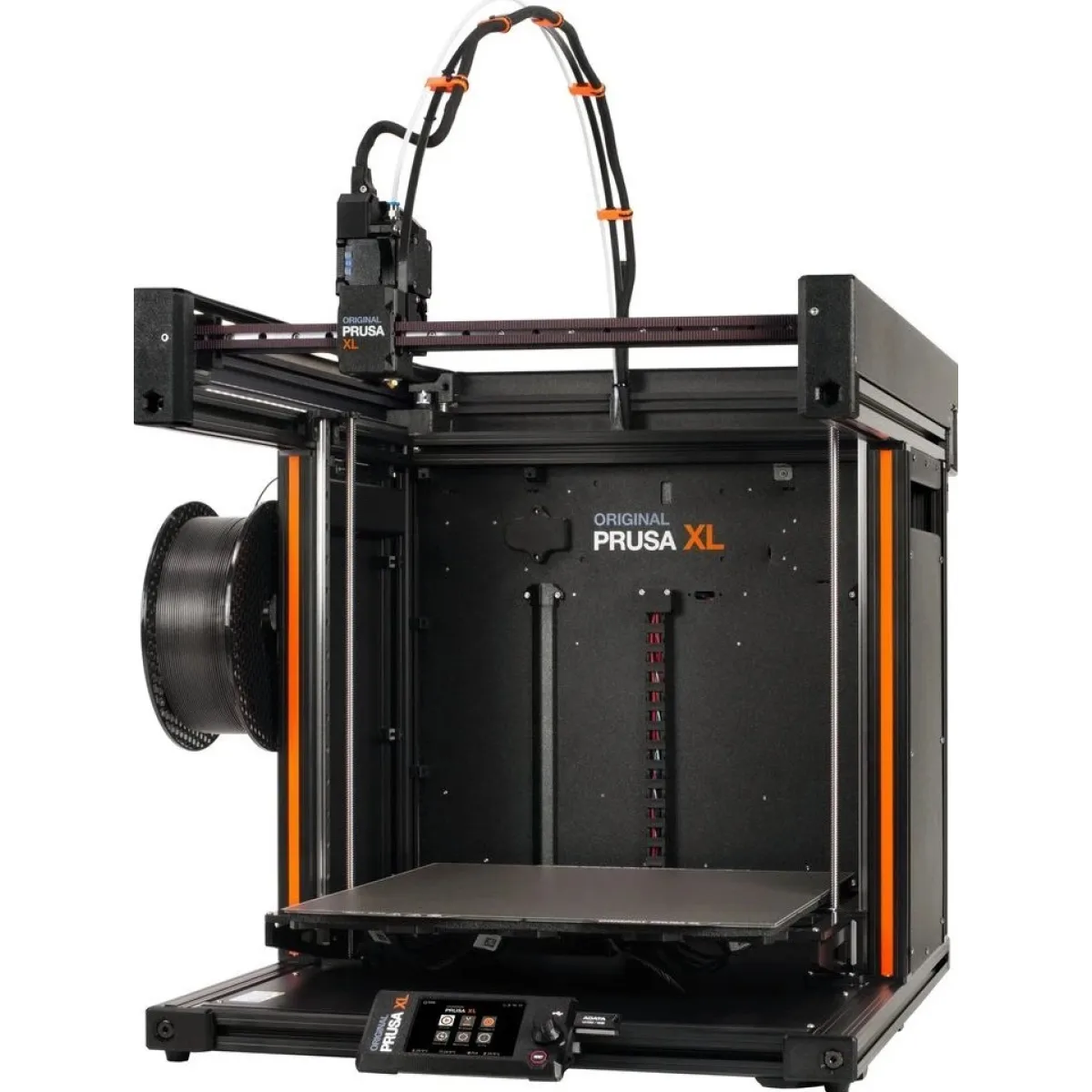

Prusa XL
Prusa XL is a multi-nozzle & toolchanger released in 2023. Key specs: technology FDM / FFF (filament), build volume 46.7 L, max nozzle temperature 290 °C, max bed temperature 120 °C.
7.4Score
Print quality5.9
Material versatility5.9
Build volume7.7
Ease of use4.0
price range$2,200–2,750Reference price converted from EUR
- Year
- 2023
- Brand
Prusa- Popularity
- #90 of 286
- Model numbers
FDM / FFF (filament)Technology
46.7 LBuild volume
290 °CMax nozzle temperature
120 °CMax bed temperature
YesEnclosed build chamber
5Max colours / materials
Spec guide
How it ranks among multi-nozzle & toolchanger printers of 2023
Build volume · 46.7 LTop 10%Max nozzle temperature · 290 °CBottom 23%Max bed temperature · 120 °CTop 15%Max colours / materials · 5Top 10%
Compared with multi-nozzle & toolchanger printers released in 2023. Bars show the share of models it beats.
compared with other multi-nozzle & toolchanger printers
Why is XL a good choice?
Build volume: 46.7 Lbetter than 75% of multi-nozzle & toolchanger printers
Max colours / materials: 5better than 93% of multi-nozzle & toolchanger printers
Number of supported materials: 13better than 79% of multi-nozzle & toolchanger printers
Weight: 27.9 kgbetter than 72% of multi-nozzle & toolchanger printers
Weak points
Max nozzle temperature: 290 °Cworse than 93% of multi-nozzle & toolchanger printers
Specifications
Full specifications
General
- Delivered as
- Fully assembled
- All-metal frame
- Yes
Build volume
- Build width (X)
- 360 mm
- Build depth (Y)
- 360 mm
- Build height (Z)
- 360 mm
- Build volume
- 46.7 L
Print quality
- Finest layer height
- 0.05 mm
- Thickest layer height
- 0.3 mm
- Vibration compensation (input shaping)
- Yes
- Automatic bed levelling
- Yes
Extruder & hotend
- Max nozzle temperature
- 290 °C
- Direct-drive extruder
- Yes
- Default nozzle
- 0.4 mm
- Nozzle material
- hardened steel
- Swappable nozzle / hotend
- Yes
- Toolheads
- 5
- Nozzles
- 5
- Filament diameter
- 1.75 mm
- Number of supported materials
- 13
- Engineering materials (PA, PC, CF)
- Yes
Print bed
- Heated bed
- Yes
- Max bed temperature
- 120 °C
- Flexible magnetic build plate
- Yes
Enclosure
- Enclosed build chamber
- Yes
- Actively heated chamber
- Yes
- Chamber light
- Yes
- Door sensor
- Yes
Connectivity & control
- Connectivity
- Wi-Fi, Ethernet, USB, NFC
- Wi-Fi
- Yes
- Ethernet
- Yes
- USB
- Yes
- SD card
- No
- Bluetooth
- No
- NFC (filament / setup)
- Yes
- App control
- Yes
- Screen size
- 3.5″
- Touchscreen
- Yes
Features
- Filament runout sensor
- Yes
- Power-loss recovery
- Yes
- Silent stepper drivers
- Yes
Size & power
- Width
- 700 mm
- Depth
- 720 mm
- Height
- 900 mm
- Weight
- 27.9 kg
- Rated power
- 240 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
