- GK3 Ultra vs ApexMaker X1

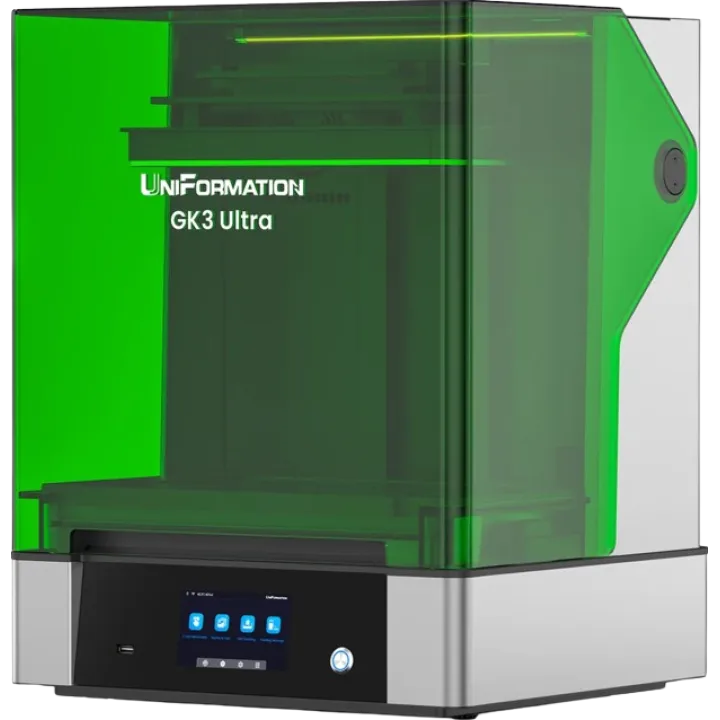

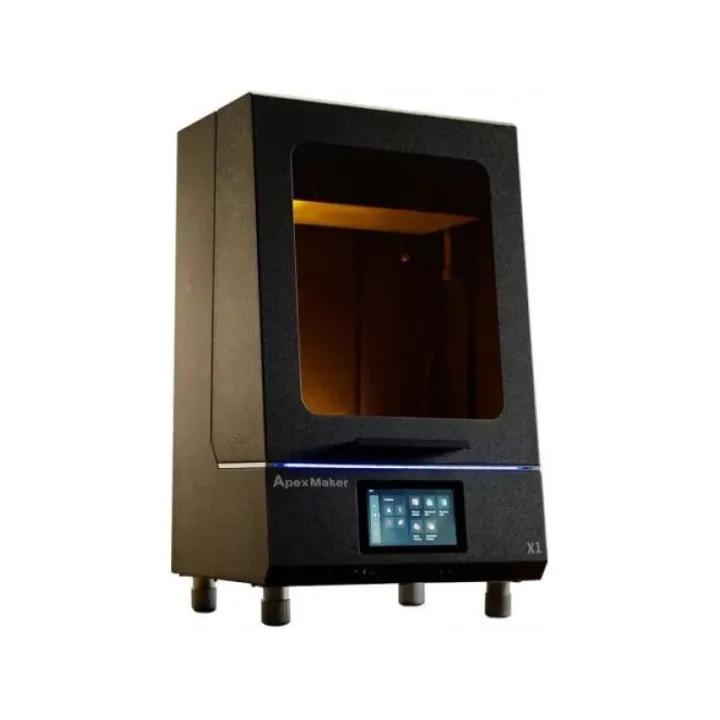

UniFormation GK3 Ultra vs Yizhi ApexMaker X1
What GK3 Ultra does better (2) and where ApexMaker X1 wins (7) — every spec side by side.
vs
7.1Speed8.0
8.0Print quality7.0
7.6Build volume9.5
8.5Ease of use9.1
Dimensions
Size comparison
GK3 UltraApexMaker X1
| GK3 Ultra | ApexMaker X1 | Difference | |
|---|---|---|---|
| Height | 575 mm | 862 mm | −287 mm |
| Width | 455 mm | 548 mm | −93 mm |
| Depth | 400 mm | 440 mm | −40 mm |
| Weight | 30 kg | 44.5 kg | −14.5 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is GK3 Ultra better than ApexMaker X1?
- LCD resolution class16K vs 8K2×
- Weight30 kg vs 44.5 kg+48%
Why is ApexMaker X1 better than GK3 Ultra?
- Build volume14.4 L vs 28.1 L+95%
- Finest layer height0.05 mm vs 0.01 mm5×
- Resin print speed150 mm/h vs 180 mm/h+20%
- Build height (Z)300 mm vs 400 mm+33%
- Screen size5″ vs 7″+40%
- Build depth (Y)160 mm vs 199 mm+24%
- Build width (X)300 mm vs 353 mm+18%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | — |
| Build volume | ||
| Build width (X) | 300 mm | 353 mm |
| Build depth (Y) | 160 mm | 199 mm |
| Build height (Z) | 300 mm | 400 mm |
| Build volume | 14.4 L | 28.1 L |
| Speed | ||
| Resin print speed | 150 mm/h | 180 mm/h |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.01 mm |
| Thickest layer height | — | 0.3 mm |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Resin & LCD | ||
| LCD resolution class | 16K | 8K |
| LCD resolution (px) | 15120 × 6230 | — |
| LCD size | 13.5″ | — |
| XY resolution | 20 µm | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, Ethernet, USB | Wi-Fi, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | — |
| USB | Yes | Yes |
| SD card | No | — |
| Bluetooth | No | — |
| Screen size | 5″ | 7″ |
| Touchscreen | Yes | Yes |
| Size & power | ||
| Width | 455 mm | 548 mm |
| Depth | 400 mm | 440 mm |
| Height | 575 mm | 862 mm |
| Weight | 30 kg | 44.5 kg |
| Rated power | 200 W | — |
