- MD-600D vs Forge1

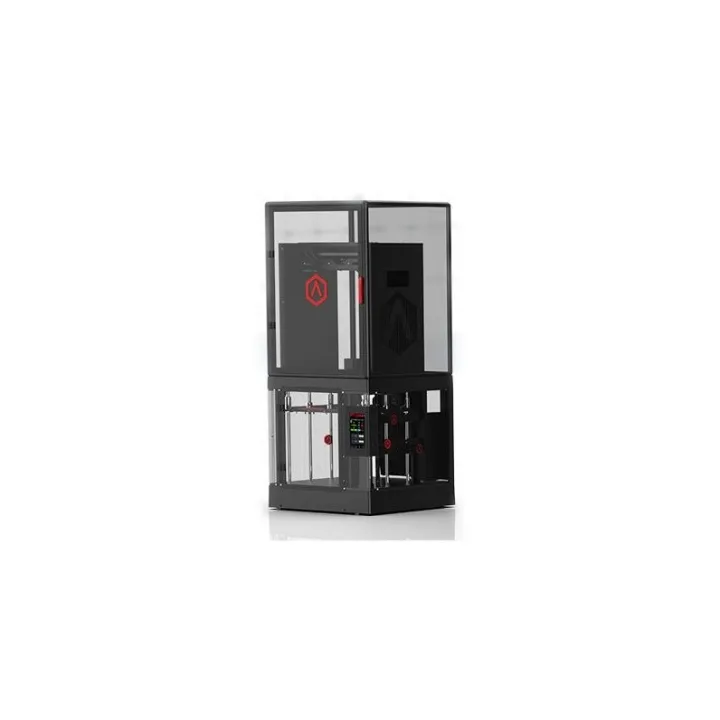

Mingda MD-600D vs Raise3D Forge1
What MD-600D does better (8) and where Forge1 wins (0) — every spec side by side.
Dimensions
Size comparison
MD-600DForge1
| MD-600D | Forge1 | Difference | |
|---|---|---|---|
| Height | 1,265 mm | 1,390 mm | −125 mm |
| Width | 1,325 mm | 620 mm | +705 mm |
| Depth | 965 mm | 626 mm | +339 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is MD-600D better than Forge1?
- Build volume216 L vs 27 L8×
- Max print speed300 mm/s vs 150 mm/s2×
- Build height (Z)600 mm vs 300 mm2×
- Engineering materials (PA, PC, CF)Yes · Forge1: No
- Max nozzle temperature350 °C vs 300 °C+17%
- Number of supported materials7 vs 17×
- Build width (X)600 mm vs 300 mm2×
- Build depth (Y)600 mm vs 300 mm2×
Why is Forge1 better than MD-600D?
Forge1 has no measurable advantages in this pair.
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Klipper firmware | Yes | — |
| Build volume | ||
| Build width (X) | 600 mm | 300 mm |
| Build depth (Y) | 600 mm | 300 mm |
| Build height (Z) | 600 mm | 300 mm |
| Build volume | 216 L | 27 L |
| Speed | ||
| Max print speed | 300 mm/s | 150 mm/s |
| Max acceleration | 10,000 mm/s² | — |
| Max volumetric flow | 40 mm³/s | — |
| Print quality | ||
| Finest layer height | — | 0.1 mm |
| Thickest layer height | — | 0.25 mm |
| Automatic bed levelling | Yes | — |
| Extruder & hotend | ||
| Max nozzle temperature | 350 °C | 300 °C |
| Default nozzle | 0.6 mm | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.4, 0.8 |
| Nozzles | 2 | 2 |
| Filament diameter | — | 2.85 mm |
| Supported materials | PETG, GF, HtPA-CF, GF, HtPA-GF25, CF25, S-HtPA | Ultrafuse 17-4PH) |
| Number of supported materials | 7 | 1 |
| Engineering materials (PA, PC, CF) | Yes | No |
| Print bed | ||
| Heated bed | Yes | — |
| Max bed temperature | 110 °C | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi | Wi-Fi, Ethernet, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | — | Yes |
| USB | — | Yes |
| Screen size | 10″ | — |
| Touchscreen | Yes | — |
| Features | ||
| Built-in camera | Yes | Yes |
| Filament runout sensor | Yes | — |
| Power-loss recovery | Yes | — |
| Size & power | ||
| Width | 1,325 mm | 620 mm |
| Depth | 965 mm | 626 mm |
| Height | 1,265 mm | 1,390 mm |
| Weight | — | 75 kg |
| Rated power | 2,400 W | — |
