- 3DP-GEMMA vs X-PLUS 3

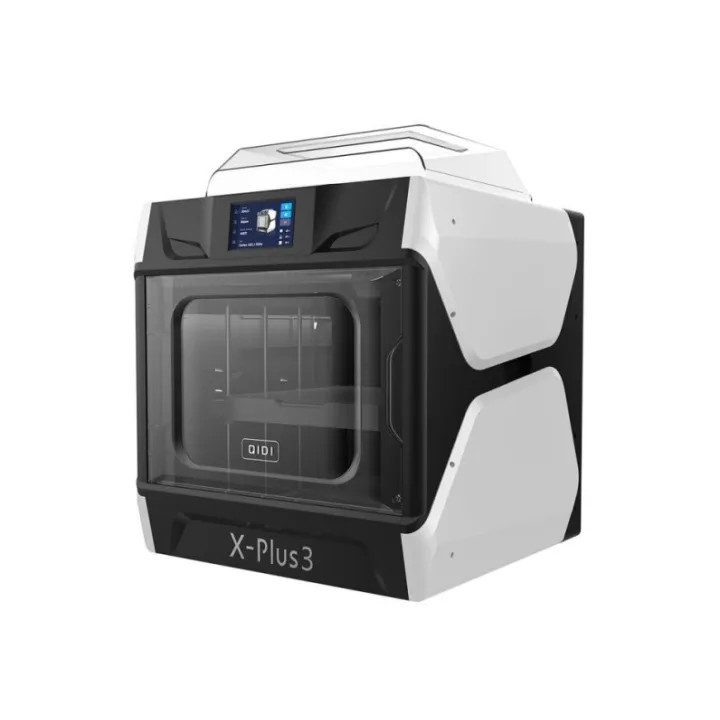

Gembird 3DP-GEMMA vs QIDI X-PLUS 3
What 3DP-GEMMA does better (1) and where X-PLUS 3 wins (8) — every spec side by side.
Dimensions
Size comparison
3DP-GEMMAX-PLUS 3
| 3DP-GEMMA | X-PLUS 3 | Difference | |
|---|---|---|---|
| Height | 290 mm | 529 mm | −239 mm |
| Width | 210 mm | 511 mm | −301 mm |
| Depth | 210 mm | 527 mm | −317 mm |
| Weight | 3 kg | 19.5 kg | −16.5 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is 3DP-GEMMA better than X-PLUS 3?
- Weight3 kg vs 19.5 kg6.5×
Why is X-PLUS 3 better than 3DP-GEMMA?
- Build volume1.3 L vs 21.2 L16.3×
- Build height (Z)100 mm vs 270 mm2.7×
- Engineering materials (PA, PC, CF)No · 3DP-GEMMA: Yes
- Wi-FiNo · 3DP-GEMMA: Yes
- Build depth (Y)110 mm vs 280 mm2.5×
- Number of supported materials1 vs 1414×
- Build width (X)120 mm vs 280 mm2.3×
- EthernetNo · 3DP-GEMMA: Yes
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Klipper firmware | — | Yes |
| Build volume | ||
| Build width (X) | 120 mm | 280 mm |
| Build depth (Y) | 110 mm | 280 mm |
| Build height (Z) | 100 mm | 270 mm |
| Build volume | 1.3 L | 21.2 L |
| Speed | ||
| Max print speed | — | 600 mm/s |
| Max volumetric flow | — | 35 mm³/s |
| Print quality | ||
| Finest layer height | 0.1 mm | — |
| Automatic bed levelling | — | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | — | 350 °C |
| Default nozzle | — | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.4, 0.8 |
| Nozzle material | — | hardened steel |
| Filament diameter | — | 1.75 mm |
| Supported materials | PLA | PET-CF, PA12-CF, compatible: PLA, ABS, TPU, ASA, PETG, PET-CF, PA12-CF, PC, UltraPA, Nylon, Carbon Fiber, etc. |
| Number of supported materials | 1 | 14 |
| Engineering materials (PA, PC, CF) | No | Yes |
| Print bed | ||
| Heated bed | — | Yes |
| Max bed temperature | — | 120 °C |
| Enclosure | ||
| Actively heated chamber | — | Yes |
| Max chamber temperature | — | 65 °C |
| Connectivity & control | ||
| Connectivity | USB, SD card | Wi-Fi, Ethernet, USB |
| Wi-Fi | No | Yes |
| Ethernet | No | Yes |
| USB | Yes | Yes |
| SD card | Yes | — |
| Bluetooth | No | — |
| Screen size | — | 5″ |
| Touchscreen | — | Yes |
| Features | ||
| Filament runout sensor | — | Yes |
| Size & power | ||
| Width | 210 mm | 511 mm |
| Depth | 210 mm | 527 mm |
| Height | 290 mm | 529 mm |
| Weight | 3 kg | 19.5 kg |
| Rated power | — | 800 W |
