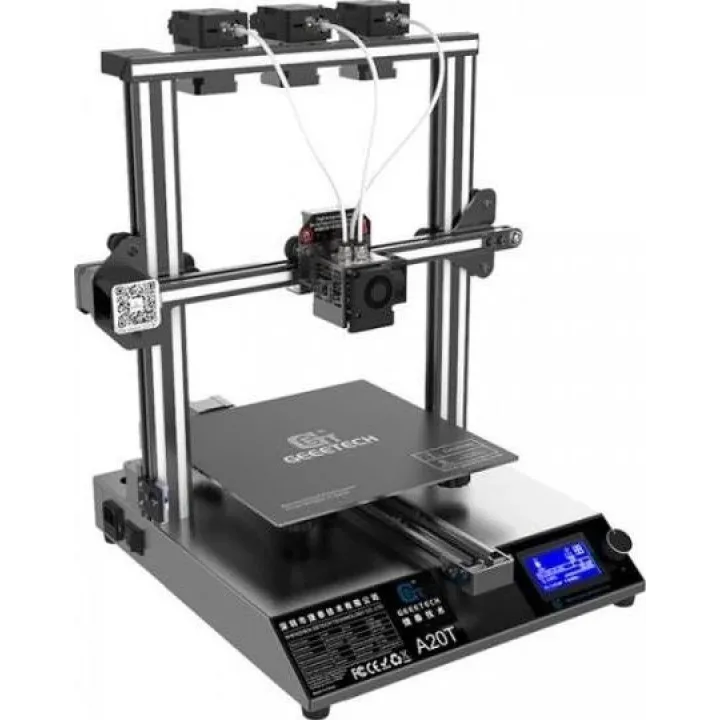

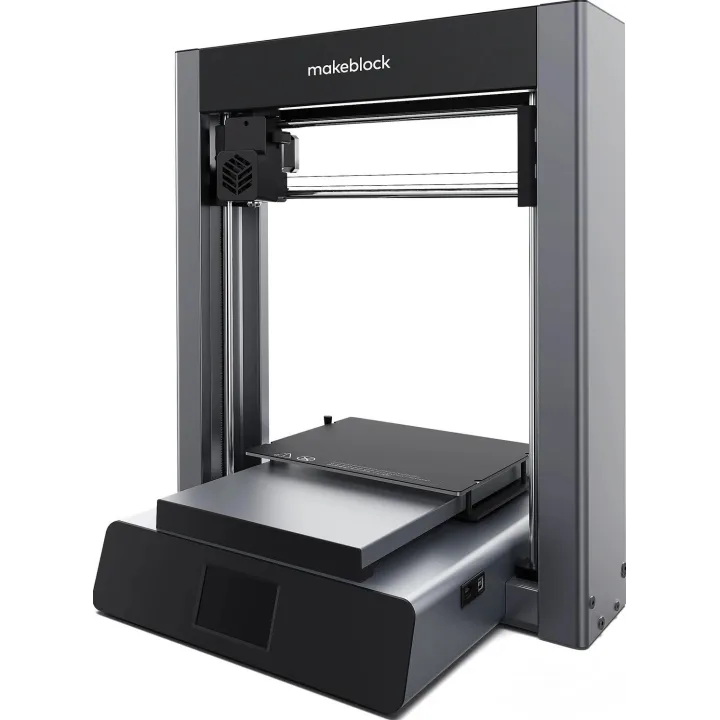

Geeetech A20T vs Makeblock mCreate
What A20T does better (4) and where mCreate wins (5) — every spec side by side.
Dimensions
Size comparison
A20TmCreate
| A20T | mCreate | Difference | |
|---|---|---|---|
| Height | 480 mm | 550 mm | −70 mm |
| Width | 442 mm | 445 mm | −3 mm |
| Depth | 447 mm | 485 mm | −38 mm |
| Weight | 9 kg | 11 kg | −2 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is A20T better than mCreate?
- Build volume15.6 L vs 14.3 L+9%
- Weight9 kg vs 11 kg+22%
- Build width (X)250 mm vs 220 mm+14%
- Build depth (Y)250 mm vs 220 mm+14%
Why is mCreate better than A20T?
- Max print speed60 mm/s vs 150 mm/s2.5×
- Finest layer height0.1 mm vs 0.05 mm2×
- Number of supported materials2 vs 42×
- TouchscreenNo · A20T: Yes
- Build height (Z)250 mm vs 295 mm+18%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | Bed-slinger (i3-style) | Bed-slinger (i3-style) |
| Delivered as | — | Partially assembled |
| All-metal frame | Yes | Yes |
| Build volume | ||
| Build width (X) | 250 mm | 220 mm |
| Build depth (Y) | 250 mm | 220 mm |
| Build height (Z) | 250 mm | 295 mm |
| Build volume | 15.6 L | 14.3 L |
| Speed | ||
| Max print speed | 60 mm/s | 150 mm/s |
| Print quality | ||
| Finest layer height | 0.1 mm | 0.05 mm |
| Thickest layer height | — | 0.3 mm |
| Extruder & hotend | ||
| Max nozzle temperature | — | 260 °C |
| Direct-drive extruder | — | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Nozzle material | — | brass |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, PLA | PLA, PP, PVA, TPU |
| Number of supported materials | 2 | 4 |
| Engineering materials (PA, PC, CF) | No | No |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | — | 80 °C |
| Connectivity & control | ||
| Connectivity | USB, SD card | USB, SD card |
| USB | Yes | Yes |
| SD card | Yes | Yes |
| Screen size | — | 3.5″ |
| Touchscreen | No | Yes |
| Features | ||
| Built-in camera | No | No |
| Filament runout sensor | — | Yes |
| Power-loss recovery | — | Yes |
| Size & power | ||
| Width | 442 mm | 445 mm |
| Depth | 447 mm | 485 mm |
| Height | 480 mm | 550 mm |
| Weight | 9 kg | 11 kg |
| Rated power | 350 W | 300 W |
