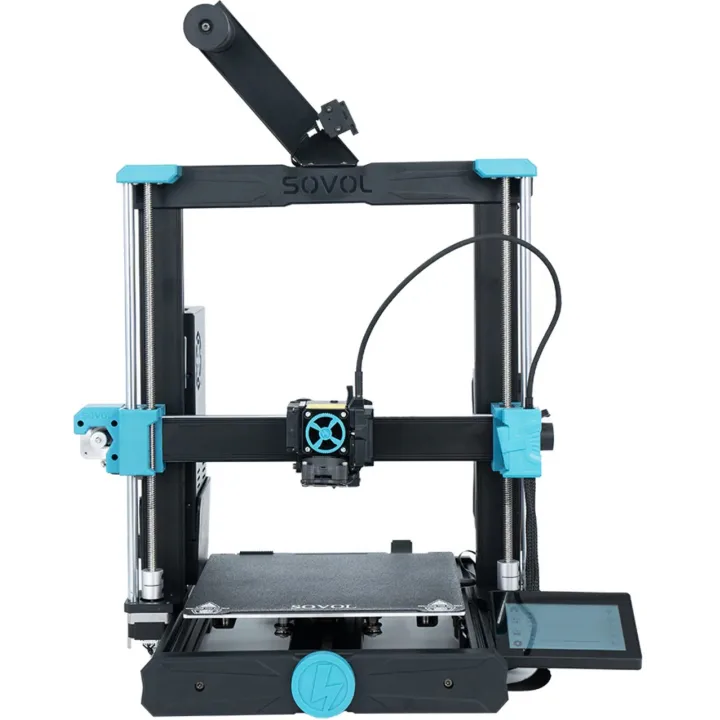

Creality Hi vs Sovol SV06 ACE
What Hi does better (6) and where SV06 ACE wins (2) — every spec side by side.
Why is Hi better than SV06 ACE?
- Build volume20.3 L vs 12.1 L+68%
- Max print speed500 mm/s vs 300 mm/s+67%
- Delivered asPartially assembled vs Kit
- Build height (Z)260 mm vs 250 mm+4%
- Build depth (Y)300 mm vs 220 mm+36%
- Build width (X)260 mm vs 220 mm+18%
Why is SV06 ACE better than Hi?
- Max acceleration12,000 mm/s² vs 20,000 mm/s²+67%
- EthernetNo · Hi: Yes
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Delivered as | Partially assembled | Kit |
| All-metal frame | Yes | — |
| Klipper firmware | — | Yes |
| Build volume | ||
| Build width (X) | 260 mm | 220 mm |
| Build depth (Y) | 300 mm | 220 mm |
| Build height (Z) | 260 mm | 250 mm |
| Build volume | 20.3 L | 12.1 L |
| Speed | ||
| Max print speed | 500 mm/s | 300 mm/s |
| Max acceleration | 12,000 mm/s² | 20,000 mm/s² |
| Print quality | ||
| Finest layer height | 0.35 mm | — |
| Thickest layer height | 0.5 mm | — |
| Vibration compensation (input shaping) | Yes | Yes |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 300 °C |
| Direct-drive extruder | Yes | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | 0.4, 0.8 | — |
| Nozzle material | — | brass |
| Swappable nozzle / hotend | Yes | — |
| Toolheads | 1 | — |
| Nozzles | 1 | — |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, PETG, PLA | — |
| Number of supported materials | 3 | — |
| Engineering materials (PA, PC, CF) | No | — |
| Multi-colour | ||
| Multi-colour printing | Yes | Yes |
| Max colours / materials | 4 | 4 |
| Multi-colour system | CFS | ACE |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 100 °C | 100 °C |
| Enclosure | ||
| Enclosed build chamber | No | — |
| Actively heated chamber | — | No |
| Chamber light | Yes | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB, Ethernet |
| Wi-Fi | Yes | Yes |
| Ethernet | No | Yes |
| USB | Yes | Yes |
| SD card | No | — |
| Bluetooth | No | — |
| Screen size | — | 4.3″ |
| Touchscreen | — | Yes |
| Features | ||
| Built-in camera | Yes | — |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | — |
| Size & power | ||
| Width | 409 mm | — |
| Depth | 477 mm | — |
| Height | 392 mm | — |
| Weight | 8.8 kg | — |
| Rated power | 1,150 W | 360 W |
