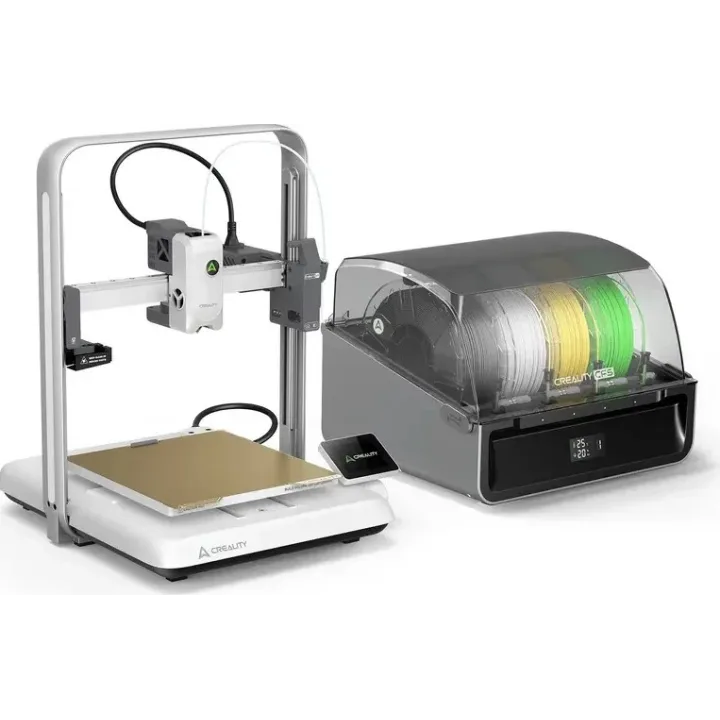

Creality Ender 3 V4 vs Sovol SV06 ACE
What Ender 3 V4 does better (1) and where SV06 ACE wins (4) — every spec side by side.
vs
8.0Speed8.2
4.7Print quality5.9
4.7Material versatility5.2
3.4Build volume4.1
7.9Ease of use6.6
Why is Ender 3 V4 better than SV06 ACE?
- Max print speed600 mm/s vs 300 mm/s2×
Why is SV06 ACE better than Ender 3 V4?
- Max acceleration12,000 mm/s² vs 20,000 mm/s²+67%
- Build volume11.4 L vs 12.1 L+6%
- EthernetNo · Ender 3 V4: Yes
- Build height (Z)235 mm vs 250 mm+6%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | Bed-slinger (i3-style) | — |
| Delivered as | Kit | Kit |
| All-metal frame | Yes | — |
| Klipper firmware | — | Yes |
| Build volume | ||
| Build width (X) | 220 mm | 220 mm |
| Build depth (Y) | 220 mm | 220 mm |
| Build height (Z) | 235 mm | 250 mm |
| Build volume | 11.4 L | 12.1 L |
| Speed | ||
| Max print speed | 600 mm/s | 300 mm/s |
| Max acceleration | 12,000 mm/s² | 20,000 mm/s² |
| Print quality | ||
| Finest layer height | 0.1 mm | — |
| Thickest layer height | 0.35 mm | — |
| Vibration compensation (input shaping) | Yes | Yes |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 300 °C |
| Direct-drive extruder | Yes | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Nozzle material | brass | brass |
| Swappable nozzle / hotend | Yes | — |
| Toolheads | 1 | — |
| Nozzles | 1 | — |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | ABS, PETG, PLA, TPU | — |
| Number of supported materials | 4 | — |
| Engineering materials (PA, PC, CF) | No | — |
| Multi-colour | ||
| Multi-colour printing | Yes | Yes |
| Max colours / materials | 4 | 4 |
| Multi-colour system | CFS | ACE |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 100 °C | 100 °C |
| Enclosure | ||
| Enclosed build chamber | No | — |
| Actively heated chamber | — | No |
| Chamber light | Yes | — |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB, Ethernet |
| Wi-Fi | Yes | Yes |
| Ethernet | No | Yes |
| USB | Yes | Yes |
| SD card | No | — |
| Bluetooth | No | — |
| Screen size | 4.3″ | 4.3″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | Yes | — |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | — |
| Silent stepper drivers | Yes | — |
| Size & power | ||
| Width | 359 mm | — |
| Depth | 396 mm | — |
| Height | 456 mm | — |
| Weight | 6.6 kg | — |
| Rated power | — | 360 W |
