- CR-6 MAX vs Neptune 4 Max

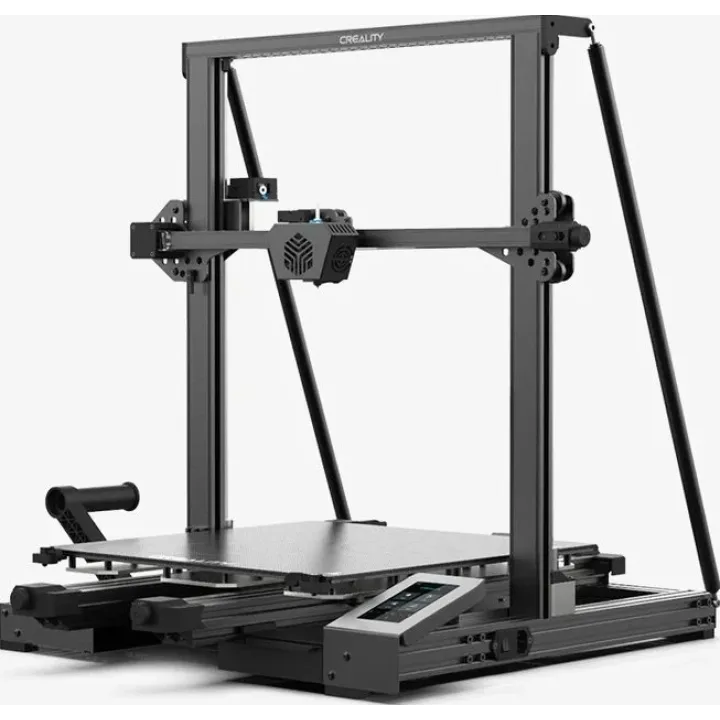

Creality CR-6 MAX vs Elegoo Neptune 4 Max
What CR-6 MAX does better (1) and where Neptune 4 Max wins (10) — every spec side by side.
vs
2.7Speed6.7
3.8Print quality7.0
2.2Material versatility2.8
5.0Build volume6.0
5.7Ease of use4.5
Dimensions
Size comparison
CR-6 MAXNeptune 4 Max
| CR-6 MAX | Neptune 4 Max | Difference | |
|---|---|---|---|
| Height | 725 mm | 740 mm | −15 mm |
| Width | 691 mm | 658 mm | +33 mm |
| Depth | 640 mm | 632 mm | +8 mm |
| Weight | 18.5 kg | 18.1 kg | +0.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is CR-6 MAX better than Neptune 4 Max?
- Max bed temperature90 °C vs 80 °C+12%
Why is Neptune 4 Max better than CR-6 MAX?
- Max print speed100 mm/s vs 500 mm/s5×
- Build volume64 L vs 84.7 L+32%
- Finest layer height0.1 mm vs 0.05 mm2×
- Direct-drive extruderNo · CR-6 MAX: Yes
- Max nozzle temperature260 °C vs 300 °C+15%
- Delivered asKit vs Partially assembled
- Build height (Z)400 mm vs 480 mm+20%
- Build width (X)400 mm vs 420 mm+5%
- Build depth (Y)400 mm vs 420 mm+5%
- Weight18.5 kg vs 18.1 kg+2%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | Bed-slinger (i3-style) | Bed-slinger (i3-style) |
| Delivered as | Kit | Partially assembled |
| All-metal frame | Yes | Yes |
| Klipper firmware | — | Yes |
| Build volume | ||
| Build width (X) | 400 mm | 420 mm |
| Build depth (Y) | 400 mm | 420 mm |
| Build height (Z) | 400 mm | 480 mm |
| Build volume | 64 L | 84.7 L |
| Speed | ||
| Max print speed | 100 mm/s | 500 mm/s |
| Max acceleration | — | 8,000 mm/s² |
| Print quality | ||
| Finest layer height | 0.1 mm | 0.05 mm |
| Thickest layer height | 0.4 mm | 0.3 mm |
| Vibration compensation (input shaping) | — | Yes |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 260 °C | 300 °C |
| Direct-drive extruder | No | Yes |
| Default nozzle | 0.4 mm | 0.4 mm |
| Nozzle material | brass | brass |
| Swappable nozzle / hotend | Yes | Yes |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Supported materials | PETG, PLA, TPU, Wood | ABS, PETG, PLA, TPU |
| Number of supported materials | 4 | 4 |
| Engineering materials (PA, PC, CF) | No | No |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 90 °C | 80 °C |
| Enclosure | ||
| Actively heated chamber | — | No |
| Chamber light | — | Yes |
| Connectivity & control | ||
| Connectivity | USB, SD card | Wi-Fi, USB, SD card |
| Wi-Fi | — | Yes |
| Ethernet | — | Yes |
| USB | Yes | Yes |
| SD card | Yes | Yes |
| Bluetooth | — | No |
| Screen size | 4.3″ | 4.3″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | — | No |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | Yes |
| Silent stepper drivers | Yes | Yes |
| Size & power | ||
| Width | 691 mm | 658 mm |
| Depth | 640 mm | 632 mm |
| Height | 725 mm | 740 mm |
| Weight | 18.5 kg | 18.1 kg |
| Rated power | 500 W | — |
