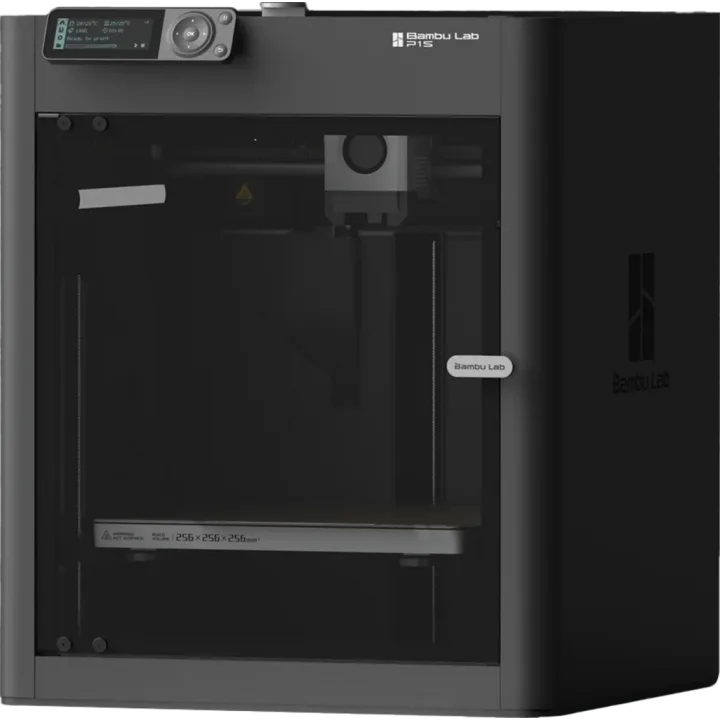

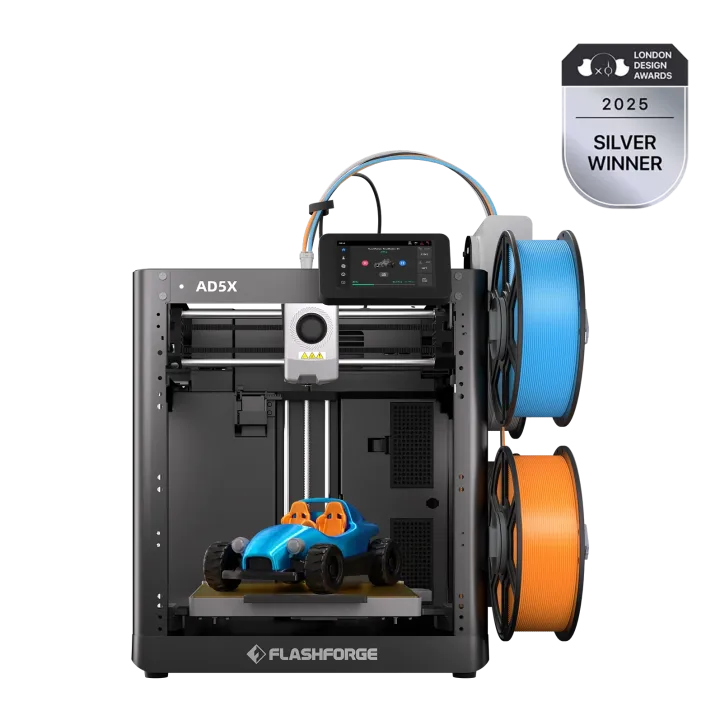

Bambu Lab P1S vs Flashforge AD5X
What P1S does better (7) and where AD5X wins (4) — every spec side by side.
Dimensions
Size comparison
P1SAD5X
| P1S | AD5X | Difference | |
|---|---|---|---|
| Height | 458 mm | 448 mm | +10 mm |
| Width | 386 mm | 363 mm | +23 mm |
| Depth | 389 mm | 402 mm | −13 mm |
| Weight | 13 kg | 12.2 kg | +0.8 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is P1S better than AD5X?
- Build volume16.8 L vs 8.8 L+91%
- Max print speed500 mm/s vs 300 mm/s+67%
- Number of supported materials7 vs 32.3×
- Build height (Z)256 mm vs 200 mm+28%
- Delivered asFully assembled vs Partially assembled
- Build depth (Y)256 mm vs 200 mm+28%
- Build width (X)256 mm vs 220 mm+16%
Why is AD5X better than P1S?
- TouchscreenNo · P1S: Yes
- Max bed temperature100 °C vs 110 °C+10%
- Screen size2.7″ vs 4.3″+59%
- Weight13 kg vs 12.2 kg+6%
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Motion system | CoreXY / XY-head | CoreXY / XY-head |
| Delivered as | Fully assembled | Partially assembled |
| All-metal frame | Yes | — |
| Build volume | ||
| Build width (X) | 256 mm | 220 mm |
| Build depth (Y) | 256 mm | 200 mm |
| Build height (Z) | 256 mm | 200 mm |
| Build volume | 16.8 L | 8.8 L |
| Speed | ||
| Max print speed | 500 mm/s | 300 mm/s |
| Max acceleration | 20,000 mm/s² | 20,000 mm/s² |
| Max volumetric flow | 32 mm³/s | — |
| Print quality | ||
| Finest layer height | 0.05 mm | 0.05 mm |
| Thickest layer height | 0.4 mm | 0.4 mm |
| Vibration compensation (input shaping) | Yes | — |
| Automatic bed levelling | Yes | Yes |
| Extruder & hotend | ||
| Max nozzle temperature | 300 °C | 300 °C |
| Direct-drive extruder | Yes | — |
| Default nozzle | 0.4 mm | 0.4 mm |
| Supported nozzle sizes (mm) | — | 0.4, 0.8 |
| Nozzle material | steel | — |
| Swappable nozzle / hotend | Yes | — |
| Toolheads | 1 | 1 |
| Nozzles | 1 | 1 |
| Filament diameter | 1.75 mm | 1.75 mm |
| Filament cutter | Yes | — |
| Supported materials | ABS, ASA, PET, PETG, PLA, PVA, TPU | PETG, PLA, TPU |
| Number of supported materials | 7 | 3 |
| Engineering materials (PA, PC, CF) | No | No |
| Multi-colour | ||
| Multi-colour printing | Yes | Yes |
| Max colours / materials | 4 | 4 |
| Multi-colour system | AMS | IFS |
| Print bed | ||
| Heated bed | Yes | Yes |
| Max bed temperature | 100 °C | 110 °C |
| Flexible magnetic build plate | Yes | — |
| Enclosure | ||
| Enclosed build chamber | Yes | — |
| Actively heated chamber | No | — |
| Air filter (carbon / HEPA) | Yes | — |
| Chamber light | Yes | Yes |
| Connectivity & control | ||
| Connectivity | Wi-Fi, SD card, Bluetooth | Wi-Fi, Ethernet, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | Yes |
| USB | No | Yes |
| SD card | Yes | No |
| Bluetooth | Yes | No |
| App control | Yes | — |
| Screen size | 2.7″ | 4.3″ |
| Touchscreen | No | Yes |
| Features | ||
| Built-in camera | Yes | — |
| Camera resolution | 0.9 MP | — |
| Filament runout sensor | Yes | Yes |
| Power-loss recovery | Yes | Yes |
| Silent stepper drivers | Yes | — |
| Size & power | ||
| Width | 386 mm | 363 mm |
| Depth | 389 mm | 402 mm |
| Height | 458 mm | 448 mm |
| Weight | 13 kg | 12.2 kg |
| Rated power | 1,000 W | 650 W |
