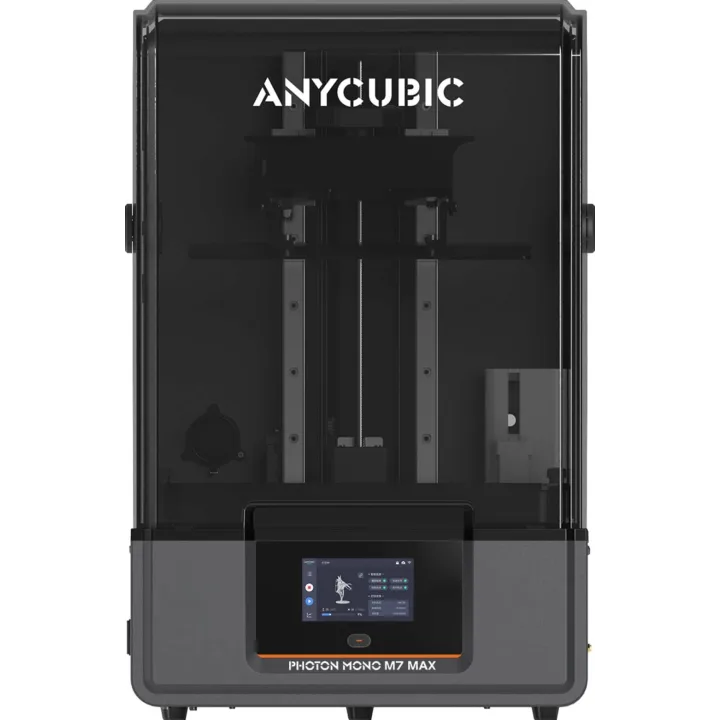

Anycubic Photon Mono M7 Max vs Elegoo Jupiter 2
What Photon Mono M7 Max does better (2) and where Jupiter 2 wins (5) — every spec side by side.
vs
4.3Speed5.0
5.0Print quality9.2
5.9Material versatility5.9
8.3Build volume8.3
5.3Ease of use7.6
Dimensions
Size comparison
Photon Mono M7 MaxJupiter 2
| Photon Mono M7 Max | Jupiter 2 | Difference | |
|---|---|---|---|
| Height | 652 mm | 648.1 mm | +3.9 mm |
| Width | 425 mm | 465 mm | −40 mm |
| Depth | 362 mm | 508.1 mm | −146.1 mm |
| Weight | 24 kg | 28.9 kg | −4.9 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Photon Mono M7 Max better than Jupiter 2?
- Weight24 kg vs 28.9 kg+20%
- Screen size4.3″ vs 4″+7%
Why is Jupiter 2 better than Photon Mono M7 Max?
- XY resolution46 µm vs 20 µm2.3×
- LCD resolution class7K vs 16K2.3×
- Built-in cameraNo · Photon Mono M7 Max: Yes
- Resin print speed63 mm/h vs 70 mm/h+11%
- LCD size13.6″ vs 14″+3%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 298 mm | 302 mm |
| Build depth (Y) | 164 mm | 162 mm |
| Build height (Z) | 300 mm | 300 mm |
| Build volume | 14.7 L | 14.7 L |
| Speed | ||
| Resin print speed | 63 mm/h | 70 mm/h |
| Print quality | ||
| Finest layer height | 0.01 mm | 0.01 mm |
| Thickest layer height | 0.15 mm | 0.2 mm |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Air filter (carbon / HEPA) | Yes | — |
| Resin & LCD | ||
| LCD resolution class | 7K | 16K |
| LCD resolution (px) | 6480 × 3600 | 15120 × 6230 |
| LCD size | 13.6″ | 14″ |
| XY resolution | 46 µm | 20 µm |
| Connectivity & control | ||
| Connectivity | Wi-Fi, USB | Wi-Fi, USB |
| Wi-Fi | Yes | Yes |
| Ethernet | Yes | Yes |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| App control | Yes | — |
| Screen size | 4.3″ | 4″ |
| Touchscreen | Yes | Yes |
| Features | ||
| Built-in camera | No | Yes |
| Camera resolution | — | 0.9 MP |
| Size & power | ||
| Width | 425 mm | 465 mm |
| Depth | 362 mm | 508 mm |
| Height | 652 mm | 648 mm |
| Weight | 24 kg | 28.9 kg |
| Rated power | 180 W | 300 W |
