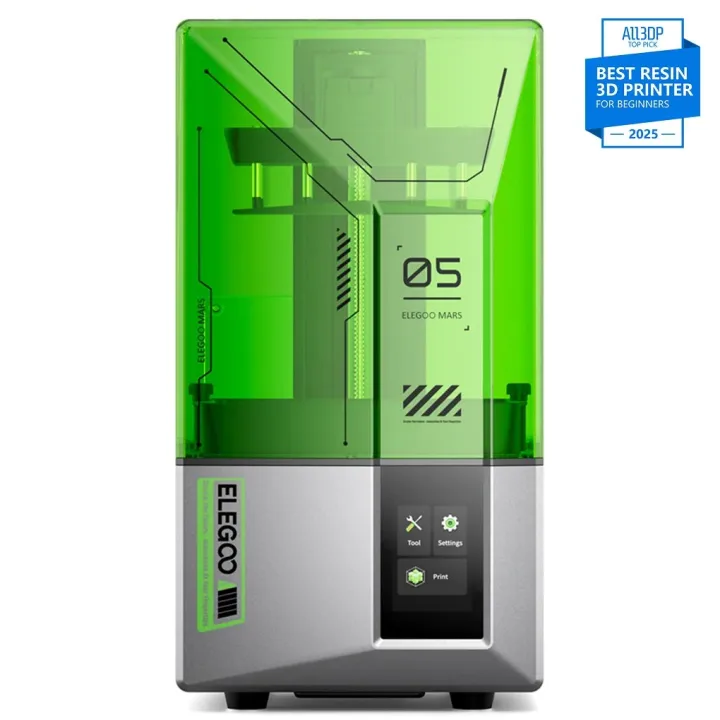

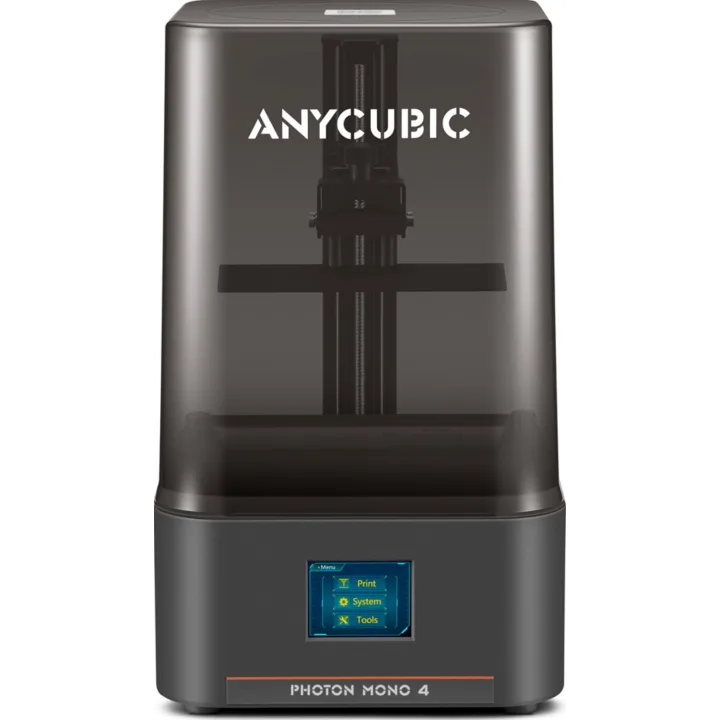

Anycubic Photon Mono 4 vs Elegoo Mars 5
What Photon Mono 4 does better (7) and where Mars 5 wins (4) — every spec side by side.
vs
5.0Speed5.0
6.3Print quality4.6
5.9Material versatility5.9
3.7Build volume2.6
2.1Ease of use2.3
Dimensions
Size comparison
Photon Mono 4Mars 5
| Photon Mono 4 | Mars 5 | Difference | |
|---|---|---|---|
| Height | 391 mm | 434 mm | −43 mm |
| Width | 230 mm | 230 mm | = |
| Depth | 235 mm | 230 mm | +5 mm |
| Weight | 4 kg | 6.6 kg | −2.6 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Photon Mono 4 better than Mars 5?
- LCD resolution class9K vs 4K2.2×
- XY resolution17 µm vs 35 µm2.1×
- Build volume2.2 L vs 1.9 L+16%
- Build height (Z)165 mm vs 150 mm+10%
- Weight4 kg vs 6.6 kg+65%
- Build width (X)153 mm vs 143 mm+7%
- LCD size7″ vs 6.6″+6%
Why is Mars 5 better than Photon Mono 4?
- Finest layer height0.03 mm vs 0.01 mm3×
- TouchscreenNo · Photon Mono 4: Yes
- Screen size2.8″ vs 3.5″+25%
- Build depth (Y)87 mm vs 90 mm+3%
Specifications
Side by side
| General | ||
| Technology | MSLA (LCD resin) | MSLA (LCD resin) |
| Delivered as | Fully assembled | Fully assembled |
| Build volume | ||
| Build width (X) | 153 mm | 143 mm |
| Build depth (Y) | 87 mm | 90 mm |
| Build height (Z) | 165 mm | 150 mm |
| Build volume | 2.2 L | 1.9 L |
| Speed | ||
| Resin print speed | 70 mm/h | 70 mm/h |
| Print quality | ||
| Finest layer height | 0.03 mm | 0.01 mm |
| Thickest layer height | 0.15 mm | 0.2 mm |
| Automatic bed levelling | No | — |
| Enclosure | ||
| Enclosed build chamber | Yes | Yes |
| Resin & LCD | ||
| LCD resolution class | 9K | 4K |
| LCD resolution (px) | 9024 × 5120 | 4098 × 2560 |
| LCD size | 7″ | 6.6″ |
| XY resolution | 17 µm | 35 µm |
| Connectivity & control | ||
| Connectivity | USB | USB |
| Wi-Fi | No | No |
| Ethernet | No | No |
| USB | Yes | Yes |
| SD card | No | No |
| Bluetooth | No | No |
| Screen size | 2.8″ | 3.5″ |
| Touchscreen | No | Yes |
| Features | ||
| Built-in camera | No | — |
| Size & power | ||
| Width | 230 mm | 230 mm |
| Depth | 235 mm | 230 mm |
| Height | 391 mm | 434 mm |
| Weight | 4 kg | 6.6 kg |
| Rated power | 54 W | 72 W |
