- 3DP-GEMMA vs Element HT

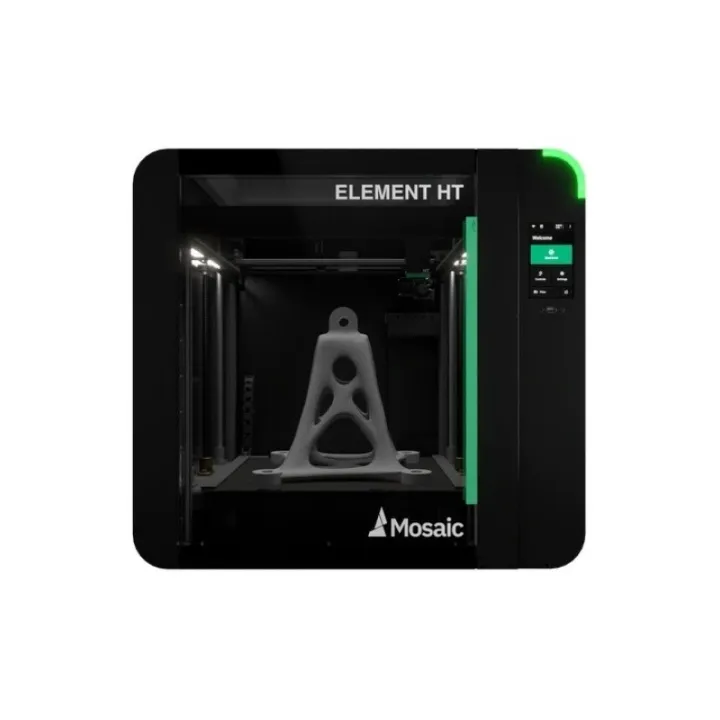

Gembird 3DP-GEMMA vs Mosaic Element HT
What 3DP-GEMMA does better (1) and where Element HT wins (9) — every spec side by side.
vs
2.2Build volume9.6
Dimensions
Size comparison
3DP-GEMMAElement HT
| 3DP-GEMMA | Element HT | Difference | |
|---|---|---|---|
| Height | 290 mm | 633 mm | −343 mm |
| Width | 210 mm | 911 mm | −701 mm |
| Depth | 210 mm | 613 mm | −403 mm |
| Weight | 3 kg | 43 kg | −40 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is 3DP-GEMMA better than Element HT?
- Weight3 kg vs 43 kg14.3×
Why is Element HT better than 3DP-GEMMA?
- Build volume1.3 L vs 44.7 L34.4×
- Build height (Z)100 mm vs 355 mm3.6×
- Finest layer height0.1 mm vs 0.02 mm5×
- Engineering materials (PA, PC, CF)No · 3DP-GEMMA: Yes
- Wi-FiNo · 3DP-GEMMA: Yes
- Build width (X)120 mm vs 355 mm3×
- Build depth (Y)110 mm vs 355 mm3.2×
- Number of supported materials1 vs 1212×
- EthernetNo · 3DP-GEMMA: Yes
Specifications
Side by side
| General | ||
| Technology | FDM / FFF (filament) | FDM / FFF (filament) |
| Build volume | ||
| Build width (X) | 120 mm | 355 mm |
| Build depth (Y) | 110 mm | 355 mm |
| Build height (Z) | 100 mm | 355 mm |
| Build volume | 1.3 L | 44.7 L |
| Speed | ||
| Max print speed | — | 100 mm/s |
| Print quality | ||
| Finest layer height | 0.1 mm | 0.02 mm |
| Extruder & hotend | ||
| Max nozzle temperature | — | 500 °C |
| Default nozzle | — | 0.4 mm |
| Supported materials | PLA | Mosaic PLA, Mosaic PETG, Mosaic Origin, Mosaic Matrix, Dissolve LT, Mosaic ABS, Mosaic ASA, Mosaic PEEK, Mosaic PEKK, Mosaic Ultem 9085, Mosaic ESD, TPE not supported |
| Number of supported materials | 1 | 12 |
| Engineering materials (PA, PC, CF) | No | Yes |
| Print bed | ||
| Heated bed | — | Yes |
| Max bed temperature | — | 120 °C |
| Enclosure | ||
| Actively heated chamber | — | Yes |
| Max chamber temperature | — | 80 °C |
| Connectivity & control | ||
| Connectivity | USB, SD card | Wi-Fi, Ethernet, USB |
| Wi-Fi | No | Yes |
| Ethernet | No | Yes |
| USB | Yes | Yes |
| SD card | Yes | — |
| Bluetooth | No | — |
| Screen size | — | 5″ |
| Touchscreen | — | Yes |
| Size & power | ||
| Width | 210 mm | 911 mm |
| Depth | 210 mm | 613 mm |
| Height | 290 mm | 633 mm |
| Weight | 3 kg | 43 kg |
